House Plan Profile

Braydon

60-012

The units of this Craftsman duplex each have three bedrooms, including vaulted master suites. Eating/conversation bars minimally separate kitchens from living rooms. There are bathrooms on ground floor as well as upstairs, near secondary bedrooms.

Mirror Images

Click items to enlarge

Duplex Plan - Braydon 60-012 - Front Elevation Duplex Plan - Braydon 60-012 - Front Elevation

Duplex Plan - Braydon 60-012 - Front Elevation

Narrow Lot House Plan - Braydon 60-012 - Rear Elevation Narrow Lot House Plan - Braydon 60-012 - Rear Elevation

Narrow Lot House Plan - Braydon 60-012 - Rear Elevation

Craftsman House Plan - Braydon 60-012 - Left Elevation Craftsman House Plan - Braydon 60-012 - Left Elevation

Craftsman House Plan - Braydon 60-012 - Left Elevation

Craftsman House Plan - Braydon 60-012 - Right Elevation Craftsman House Plan - Braydon 60-012 - Right Elevation

Craftsman House Plan - Braydon 60-012 - Right Elevation

Duplex Plan - Braydon 60-012 - Front Elevation
Duplex Plan - Braydon 60-012 - Front Elevation
Narrow Lot House Plan - Braydon 60-012 - Rear Elevation
Narrow Lot House Plan - Braydon 60-012 - Rear Elevation
Craftsman House Plan - Braydon 60-012 - Left Elevation
Craftsman House Plan - Braydon 60-012 - Left Elevation
Craftsman House Plan - Braydon 60-012 - Right Elevation
Craftsman House Plan - Braydon 60-012 - Right Elevation

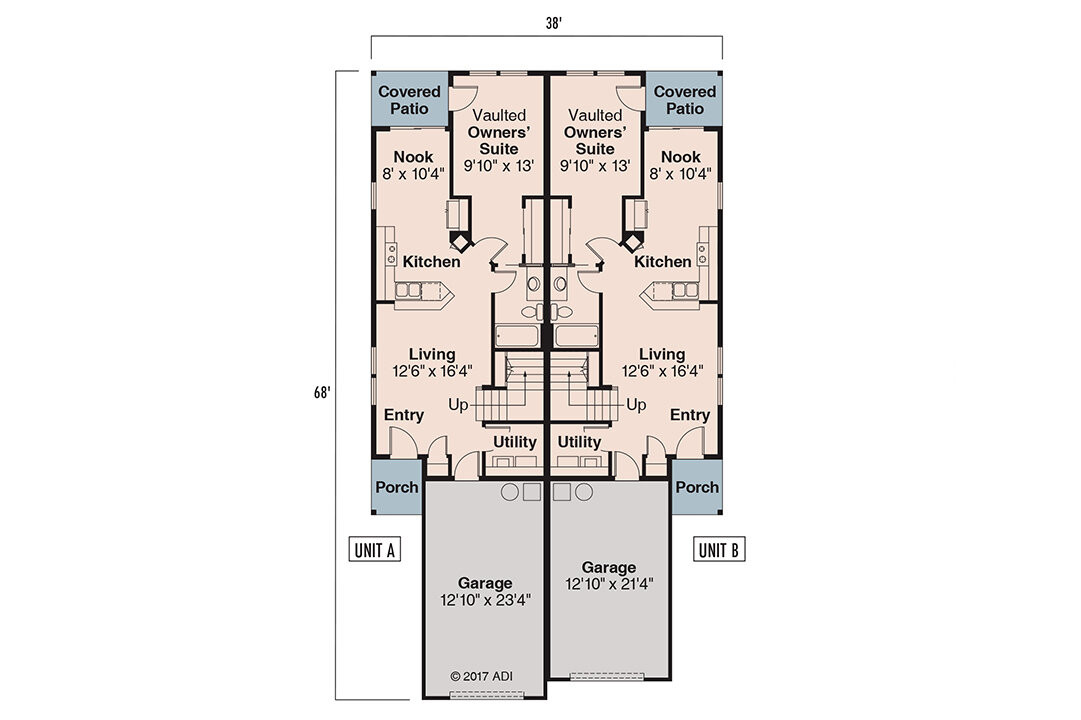

Duplex Plan - Braydon 60-012 - 1st Floor Plan Duplex Plan - Braydon 60-012 - 1st Floor Plan

Duplex Plan - Braydon 60-012 - 1st Floor Plan

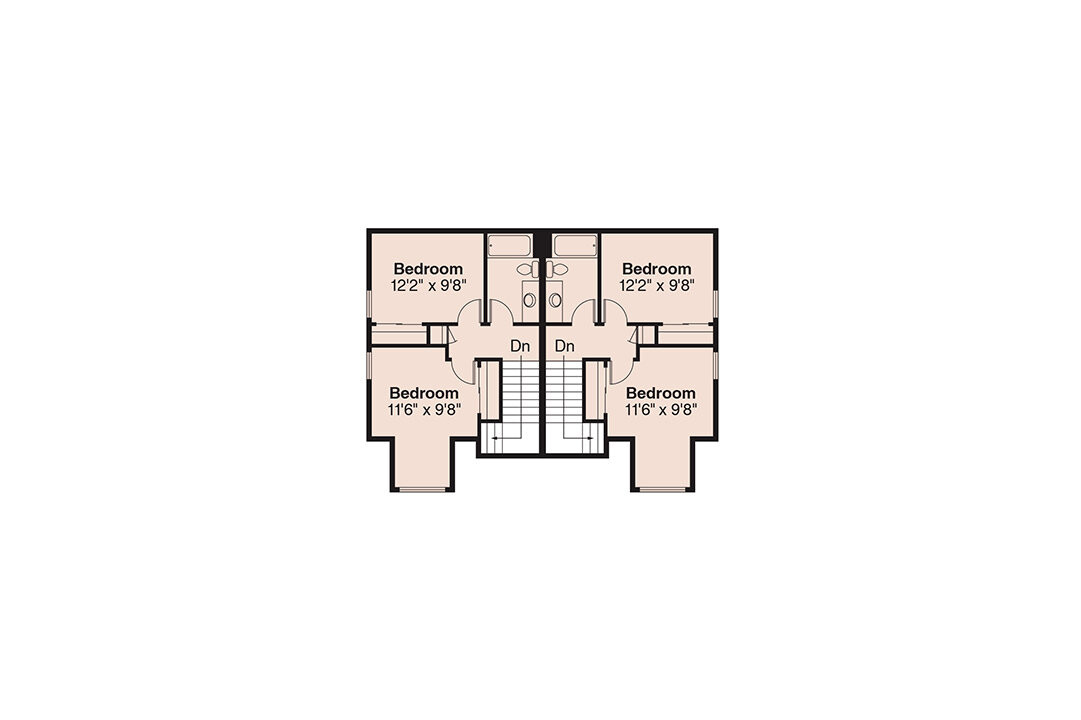

Duplex Plan - Braydon 60-012 - 2nd Floor Plan Duplex Plan - Braydon 60-012 - 2nd Floor Plan

Duplex Plan - Braydon 60-012 - 2nd Floor Plan

Braydon a duplex that's full of features

The Braydon is a charming, two-story duplex that packs a lot of living area into a fairly narrow footprint. Entry porches and rear patios are widely separated, for maximum privacy. Each unit has three bedrooms.

Four gables face the street. The widest caps both garages, while the narrower front gable highlights the extended garage on the left. Twin gables accent the matching dormers, set further back on the main roof.

Inside, the two units are mirror images, so one description will suffice. Entry is via a recessed porch bounded by a slender post. A coat closet is just inside, near the door to the utility room. Direct garage access is also located at this juncture, as is a stairway to the second floor.

The living room expands out from the entry, and is open to the kitchen across a raised eating bar. An optional TV cabinet fits in nicely along the living room's inner wall.

Range and oven are built into the kitchen's longest counter. Sink and dishwasher are next to each other behind the eating bar, a handy spot to hang out and chat with people working in the kitchen. A small pantry fills the niche next to a refrigerator with overhead cabinets. The nook is naturally bright on all but the darkest days, and its wide sliding glass doors open onto a covered patio, which could be screened.

A vaulted ceiling expands the main floor bedroom, which has direct patio access and links to the bathroom. Two more bedrooms are upstairs, along with another full bathroom. A wide dormer expands the front bedroom in both units of the Braydon.
