House Plan Profile

Elliot

30-278

Brick veneer highlights the entry to this traditional ranch house plan. The vaulted living room has a fireplace flanked by shelves or cabinets. The large family room flows into the dining room and kitchen at rear, where sliding glass doors open onto a patio. Hobby room/office and pass-through utility room are nearby.

Mirror Images

Click items to enlarge

Ranch House Plan - Elliot 30-278 - Front Elevation Ranch House Plan - Elliot 30-278 - Front Elevation

Ranch House Plan - Elliot 30-278 - Front Elevation

Ranch Home Plan - Elliot 30-278 - Rear Elevation Ranch Home Plan - Elliot 30-278 - Rear Elevation

Ranch Home Plan - Elliot 30-278 - Rear Elevation

Traditional House Plan - Elliot 30-278 - Left Elevation Traditional House Plan - Elliot 30-278 - Left Elevation

Traditional House Plan - Elliot 30-278 - Left Elevation

Traditional House Plan - Elliot 30-278 - Right Elevation Traditional House Plan - Elliot 30-278 - Right Elevation

Traditional House Plan - Elliot 30-278 - Right Elevation

Ranch House Plan - Elliot 30-278 - Front Elevation
Ranch House Plan - Elliot 30-278 - Front Elevation
Ranch Home Plan - Elliot 30-278 - Rear Elevation
Ranch Home Plan - Elliot 30-278 - Rear Elevation
Traditional House Plan - Elliot 30-278 - Left Elevation
Traditional House Plan - Elliot 30-278 - Left Elevation
Traditional House Plan - Elliot 30-278 - Right Elevation
Traditional House Plan - Elliot 30-278 - Right Elevation

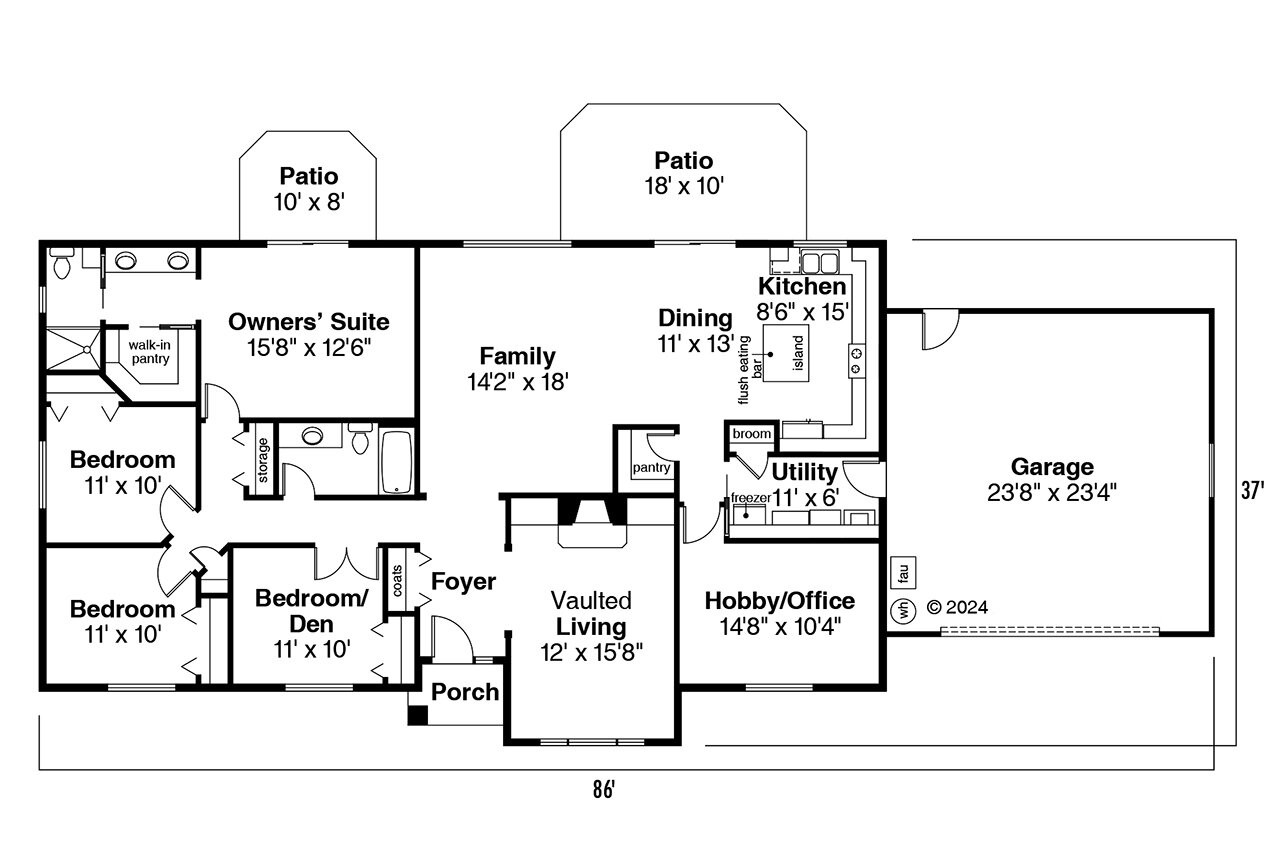

Ranch House Plan - Elliot 30-278 - Floor Plan Ranch House Plan - Elliot 30-278 - Floor Plan

Ranch House Plan - Elliot 30-278 - Floor Plan

Elliot bright with natural light

Intriguing window detailing beguiles viewers into taking a second look at the Elliot.

Slender ribbons of glass appear to border all of the larger panes, including a gently arched transom that crowns the largest in a cluster of three. Inside, the abundant use of glass throughout creates a generous collection of naturally illuminated living spaces.

Even the foyer is brightened by a swath of light washing in through the multipaned sidelight. The opening on the right leads into a vaulted living room. Built-in storage cabinets and a gas fireplace fill the entire wall furthest from the windows.

The family room is doubly bright, with light spilling down through two skylights in addition to wide rear windows. This spacious room is all of a piece with the kitchen and dining area. Sliders open onto a patio, convenient for outdoor dining.

Kitchen counters and cabinets wrap around three walls, while a central work island adds even more work and storage space. Multiple cooks can combine culinary efforts here without getting in each other's way, and the roomy walk-in pantry provides ample storage for staples and supplies.

A pass-through utility room connects to the garage. It can double as a mud room, has space for a freezer, and comes outfitted with a utility sink and broom closet. The room next door could be a hobby room, home office, exercise room, guest room, or you name it.

Bedrooms fill the left side of the Elliot. The master suite boasts a large walk-in closet, twin lavs, and separately enclosed toilet and shower. Any of the three additional bedrooms could be put to other uses.
