This charming cottage-style garage plan offers a unique blend of functionality and comfort, combining ample vehicle storage with cozy living space. Designed to accommodate up to four cars, this detached garage is perfect for homeowners looking to add both practical parking and a fully equipped guest or vacation cottage to their property.
Garage 20-058
Photographs may show modifications made to plans. Copyright owned by designer.
At a Glance
-
2285
Square Feet
-
1
Bedrooms
-
1
Full Baths
-
1
Floors
-
2
- 4
Car Garage
More About The Plan
Contact ADI Client Support Specialist
Contact ADI Experts
Have questions? Help from our customer support specialists is just a click away.
Let’s be social
Connect with us for the latest from HPC
Plan Details
Basic Details
living sq ft:
2285 sq ft
1st floor sq ft:
921 sq ft
garage sq ft:
1364 sq ft
dimensions:
38'-1"W × 68'-0"D
building height:
24'-6"
bedrooms:
1
full baths:
1
floors:
1
primary style:
Craftsman
secondary styles:
Cottage, Traditional
collections:
Accessory Structures, Plans Now, 1 Story House Plans, Garage, Garage w/Living, Carports
Building Details
primary foundation:
Concrete Slab
building lot type:
Level Lot
primary roof pitch:
7/12
roof framing:
Truss
snow roof load:
25 psf.
primary wall type:
2x6 Wood Frame
exterior wall material:
Siding
exterior & porch features:
Covered Porch
Interior Details
main floor ceiling height:
12'-0"
kitchen features:
Eating Bar or Peninsula
interior features:
Fireplace/Wood Stove, Great Room
Garage
garage:
2-4 Cars
garage orientation:
Front Entry, Side Entry
garage features:
Kitchenette, w/Living Space
What's Included in a Plan Set?
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

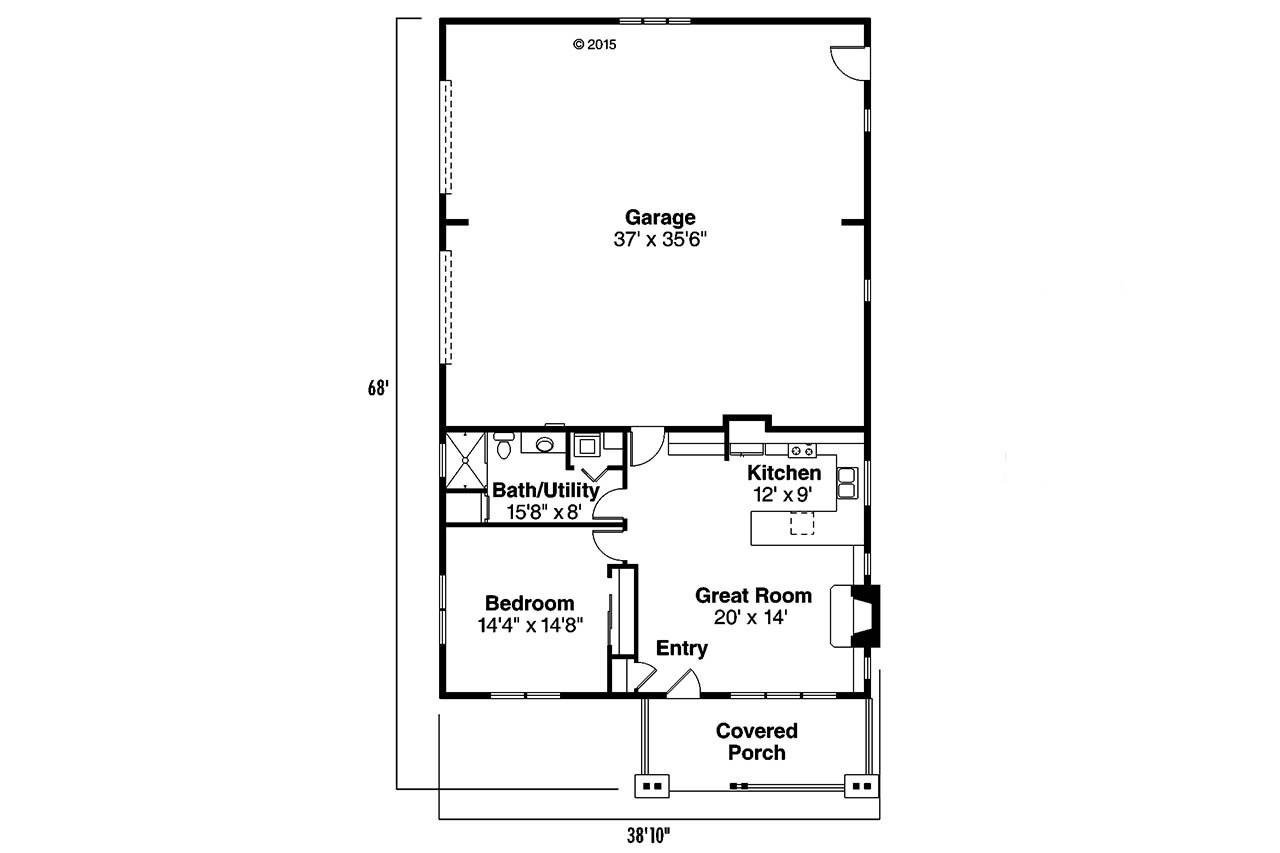

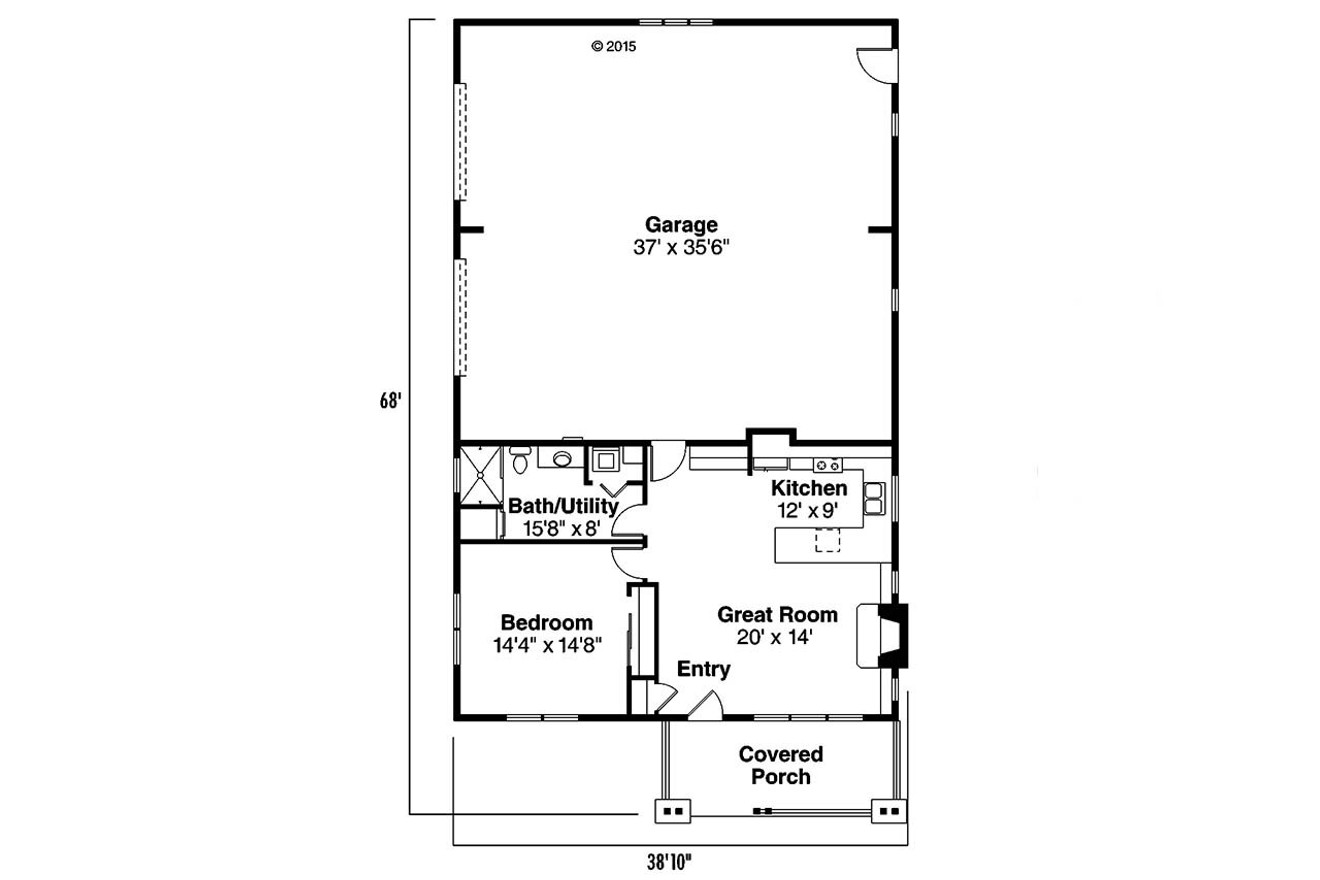

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Concept Plan Packages:
Includes PDF and DWG files of the:
Elevations
Floor Plan (s)
Roof Outline
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
