Plan 20-151

  • Traditional House Plan - 20-151 - Front Exterior Icon_ionic-ios-expand

Photographs may show modifications made to plans. Copyright owned by designer.

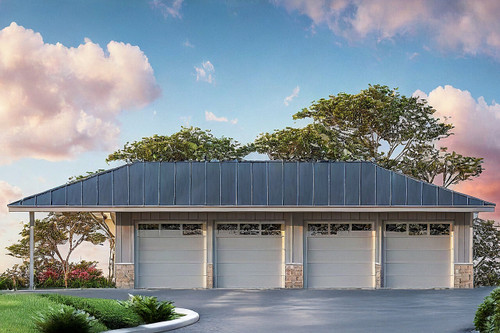

  • Traditional House Plan - 20-151 - Front Exterior
  • Secondary Image - Traditional House Plan - 20-151 - Rear Exterior
  • Traditional House Plan - 20-151 - Left Exterior
  • Traditional House Plan - 20-151 - Right Exterior

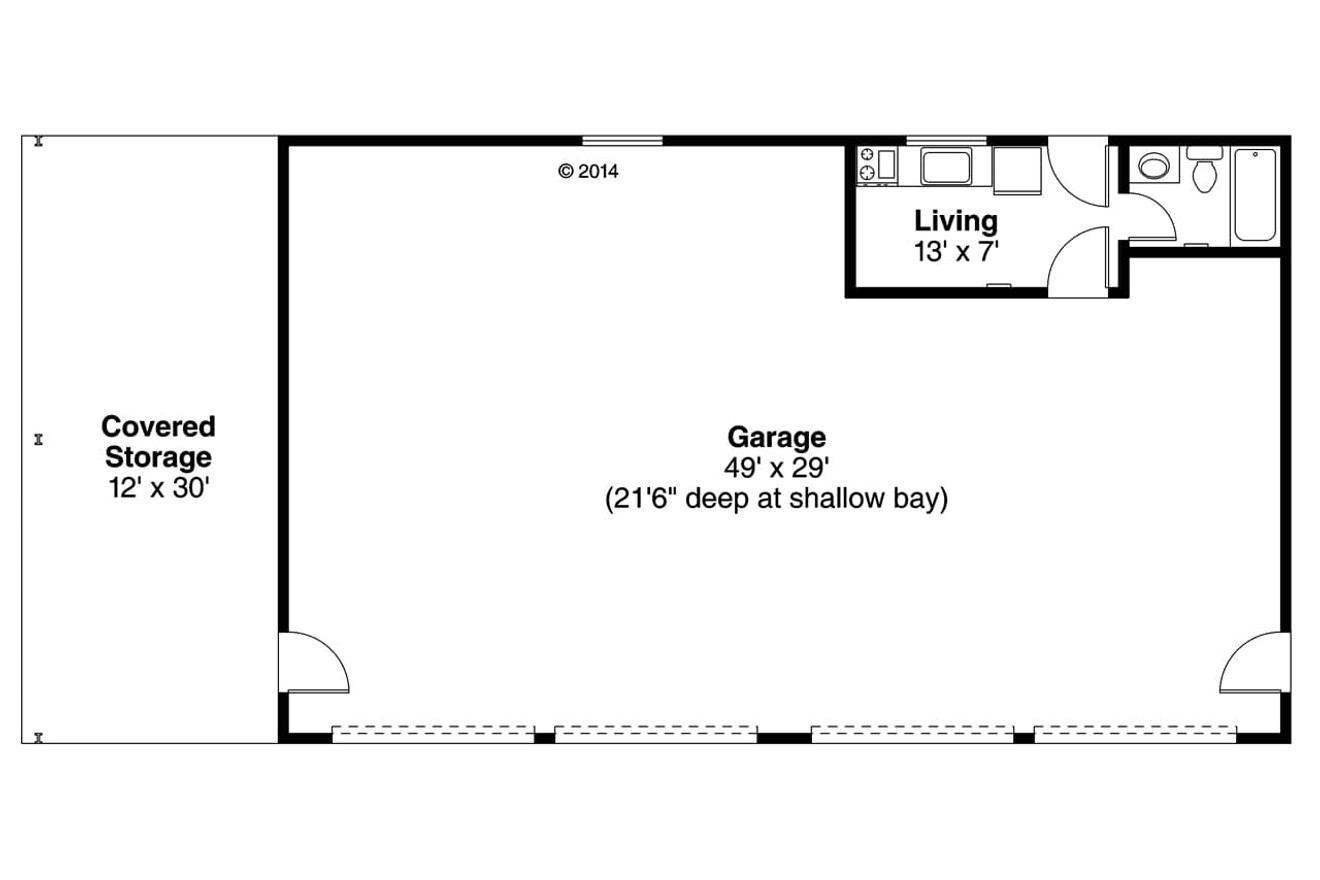

  • Traditional House Plan - 20-151 - 1st Floor Plan
1 of 5

At a Glance

  • Square Footage: Total Living 1860 Square Feet
  • Baths Full 1 Full Baths
  • Floors 1 Floors
  • Garage Bays Min 4 Car Garage
