Designed with rural charm and modern needs in mind, this Farmhouse Design garage balances spacious storage with clean architectural lines. Measuring 20 feet wide by 47 feet deep, this detached structure incorporates a full RV Bay within a larger 2 Car layout, making it perfect for households that require storage for oversized vehicles without sacrificing everyday utility. The central feature of the garage is the 15-foot ceiling height, ensuring even the tallest motorhomes or trailers have room to park with ease.
RV Garage 20-614
Photographs may show modifications made to plans. Copyright owned by designer.
At a Glance
-
940
Square Feet
-
1
Floors
-
2
Car Garage
More About The Plan
Contact ADI Client Support Specialist
Contact ADI Experts
Have questions? Help from our customer support specialists is just a click away.
Let’s be social
Connect with us for the latest from HPC
Plan Details
Basic Details
living sq ft:
940 sq ft
garage sq ft:
940 sq ft
dimensions:
20'-0"W × 47'-0"D
building height:
19'-4"
floors:
1
primary style:
Traditional
secondary styles:
Farmhouse, Country
collections:
1 Story House Plans, Narrow Lot House Plans, Garage, Garage w/Living, Carports, Small House Plans, New House Plans
Building Details
primary foundation:
Concrete Slab
building lot type:
Level Lot, Narrow Lot (<45')
primary roof pitch:
4/12
roof framing:
Truss
snow roof load:
25 psf.
primary wall type:
2x6 Wood Frame
alternate wall types:
2x4 Wood Frame
exterior wall material:
Batten Board
Interior Details
main floor ceiling height:
15'-0"
Garage
garage:
2 Cars
garage orientation:
Front Entry
garage features:
RV Garage, Oversized
What's Included in a Plan Set?
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

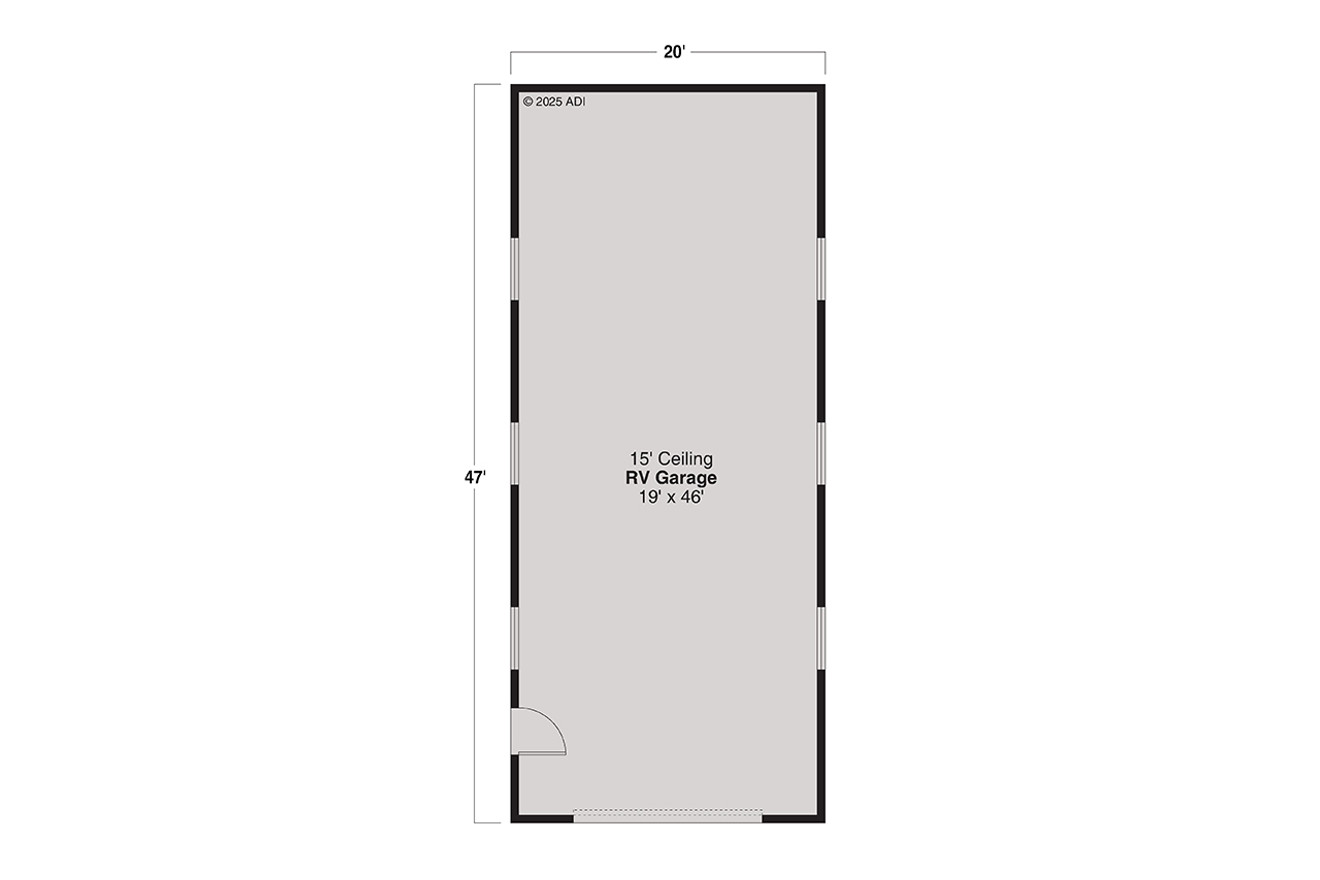

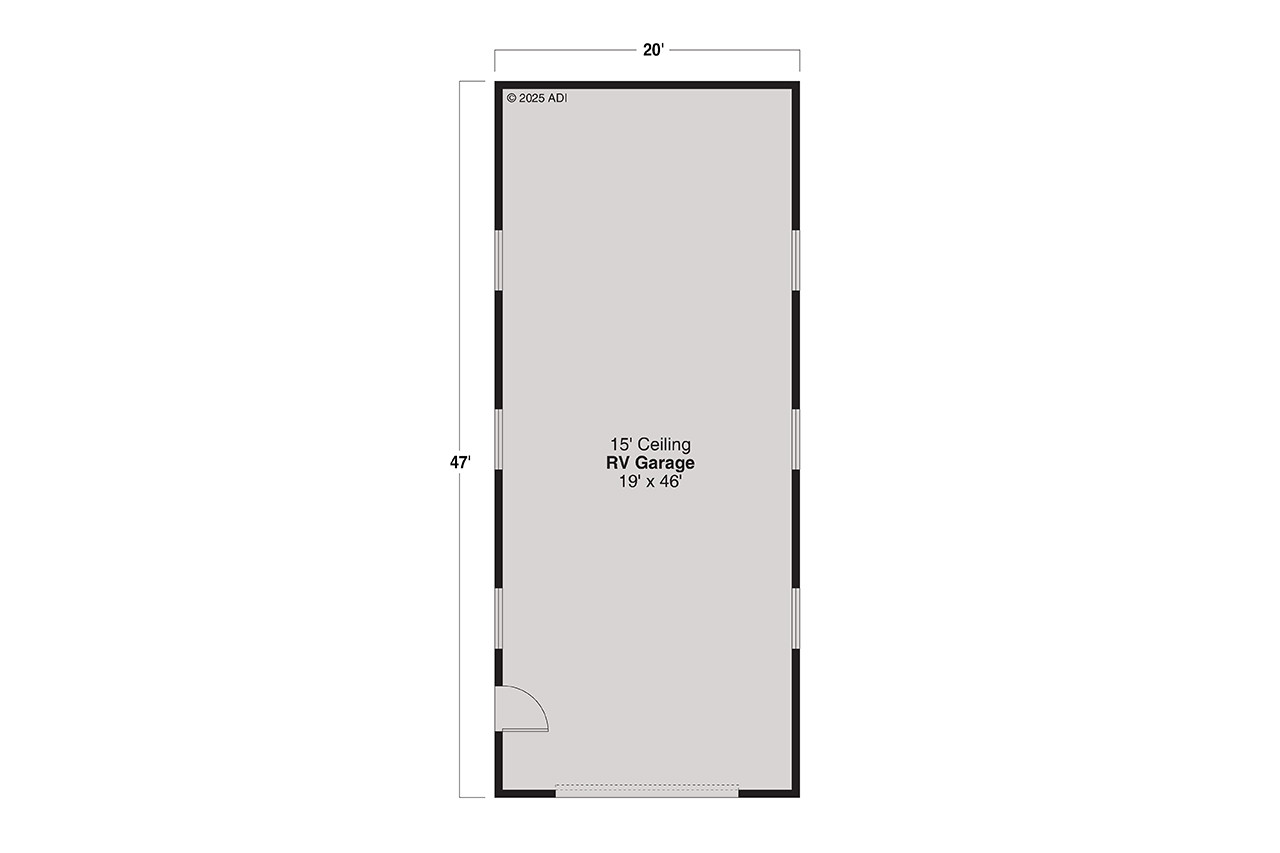

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Concept Plan Packages:
Includes PDF and DWG files of the:
Elevations
Floor Plan (s)
Roof Outline
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to Plan Buying?
RV Garage - 20-614
Associated Designs
$235.00
- SKU:
- 101 - 20-614
- Plan Number:
- 61521
- Date Added:
- 04/16/2025
- Date Modified:
- 04/16/2025
- Designer:
- info@associateddesigns.com; jessica@associateddesigns.com
- Designer Plan Title:
- 20-614
- Plan SKU:
- 20-614
- Plan Name:
- RV Garage
- Note Plan Packages: Plans Now:
- PDF Download!
- Note Plan Packages: PDF Print Package:
- Best Value!
- Note Plan Packages: Master Builder CAD Set:
- Unlimited Builds!
- Max Price:
- 760.00
- Min Price:
- 235.00
- Pricing Set Title:
- Garage CAT 2
- Family Plan:
- 20-434
- Creation Date:
- 04/2025
- Structure Type:
- Garage
- Square Footage: Total Living:
- 940
- Square Footage: Garage:
- 940
- Floors:
- 1
- FLOORS_filter:
- 1
- Ridge Height:
- 19'4"
- Overall Exterior Depth:
- 47
- Overall Exterior Width:
- 20
- Main Floor Ceiling Height:
- 15'
- Available Foundations:
- Concrete Slab
- Default Foundation:
- Concrete Slab
- Available Walls:
- 2x4 Wood Frame
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Batten Board
- Lot Slope:
- Level Lot
- Lot Type:
- Narrow Lot (
- Roof Framing:
- Truss
- Snow Roof Load:
- 25.00
- Roof Pitch:
- 4/12
- Primary Style:
- Traditional
- Secondary Styles:
- Farmhouse
- Secondary Styles:
- Country
- Garage Orientation:
- Front Entry
- Garage Bays Min:
- 2
- Garage Bays Max:
- 2
- GARAGE BAYS_filter:
- 2
- Garage Features:
- RV Garage
- Garage Features:
- Oversized
- Collections:
- 1 Story House Plans
- Styles:
- Traditional House Plans
- Styles:
- Country House Plans
- Collections:
- Narrow Lot House Plans
- Styles:
- Farmhouse Plans
- Collections:
- Garage, Garage w/Living, Carports
- Collections:
- Small House Plans
- Collections:
- New House Plans
- Regions:
- Northwest House Plans/Oregon Home Plans
- Product Rank:
- 25
