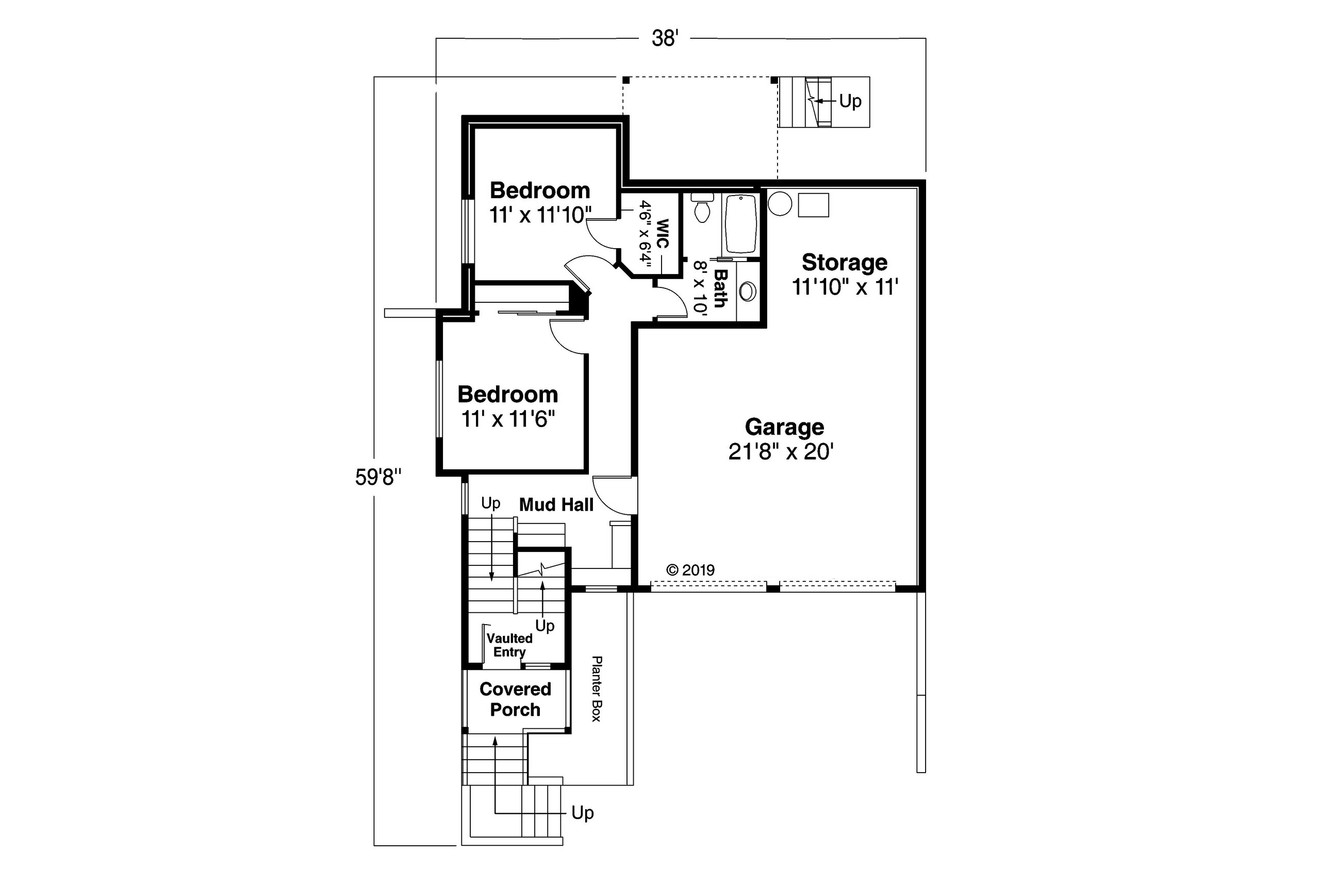

  • Contemporary House Plan - Sheffield 31-160 - 1st Floor Plan
1 of 6

At a Glance

  • Square Footage: Total Living 1880 Square Feet
  • Bedrooms 3 Bedrooms
  • Baths Full 2 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 2 Car Garage

More About The Plan

Floor plan

1 of 2
Contemporary House Plan - Sheffield 31-160 - 1st Floor Plan Icon_ionic-ios-expand
Contact us icon

Contact ADI Client Support Specialist

Contact ADI Experts

Have questions? Help from our customer support specialists is just a click away.

Plan Name: Sheffield
Plan Number: 31-160
Your submission has been received!
item-icon

Free modification quote

Call Us 541-461-2082 or fill out our form.

Get Started
item-icon

Cost to build report

How Much Will This Plan Cost To Build?

Find Out
A single review set of the construction drawings marked Not For Construction and do not include a license to build. Upgrade to a licensed construction package or sign on for modifications within 1 year of purchase and received a 100% upgrade credit. $825.00
Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license. $1250.00
Best Value!
A digital copy of the construction drawings in a PDF format (non-modifiable, print only). Includes a single build license with permissions to make copies of the plan locally as needed. The PDF Print Package is emailed saving shipping costs and time. $1025.00
A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time. $2100.00
A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Masters are emailed saving shipping costs and time. $2300.00
Unlimited Builds!
A digital plan package which includes both the PDF Master and CAD Master (DWG) and includes an unlimited build license. $2525.00

Select a Foundation type

Standard with Price
Standard

Select a Wall type

Standard with Price
Standard
1
This option is not available for package '1 Set Study Package' $825.00
$0.00
$300.00
$0.00
$55.00
Quantity of Additional Sets
1
$0.00
Subtotal of Plan Package and Options
$825.00
GetQuote

Free modification quote

Are you looking for additional
plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 541-461-2082

Adding to Cart… The item has been added

Plan Details

Basic Details

living sq ft:

1880 sq ft

1st floor sq ft:

1205 sq ft

garage sq ft:

571 sq ft

basement sq ft:

675 sq ft

dimensions:

38'-0"W × 59'-8"D

building height:

29'-0"

bedrooms:

3

full baths:

2

half baths:

1

floors:

2

primary style:

Contemporary

secondary styles:

Modern

collections:

New Urban House Plans, Reverse Living House Plans, Split-Level House Plans, 3 Bedroom House Plans, 2 Story House Plans, View Lot House Plans, Sloped Lot House Plans, Narrow Lot House Plans, Small House Plans

Building Details

primary foundation:

Daylight/Walk-out Basement

building lot type:

Front View, Narrow Lot (<45'), View Lot, Uphill Sloping Lot

primary roof pitch:

2/12

roof framing:

Combination Stick/Truss

snow roof load:

25 psf.

primary wall type:

2x6 Wood Frame

exterior wall material:

Lap, Panel

exterior & porch features:

Balcony, Covered Porch, Deck

Interior Details

main floor ceiling height:

9'-0"

second floor ceiling height:

9'

kitchen features:

Breakfast Nook/Dining Area, Eating Bar or Peninsula, Walk-In or Wall Pantry

utility room features:

Close to Kitchen or Garage, Main Floor Utility Room, Mudroom or Mudhall

master suite features:

Main Floor Master Suite, Private Toilet, Separate From Other Bedrooms, Shower Only, Walk In Closet, Walk-In Shower

interior features:

Formal Dining Room, Great Room, Storage, Walk-Out/Daylight Basement

Garage

garage:

2 Cars

garage type:

Attached

garage orientation:

Garage Under

garage features:

Storage

What's Included in a Plan Set?
