Heartwood 10-300

  • Country House Plan - Heartwood 10-300 - Front Exterior Icon_ionic-ios-expand

Photographs may show modifications made to plans. Copyright owned by designer.

  • Country House Plan - Heartwood 10-300 - Front Exterior
  • Country House Plan - Heartwood 10-300 - Rear Exterior
  • Country House Plan - Heartwood 10-300 - Left Exterior
  • Country House Plan - Heartwood 10-300 - Right Exterior

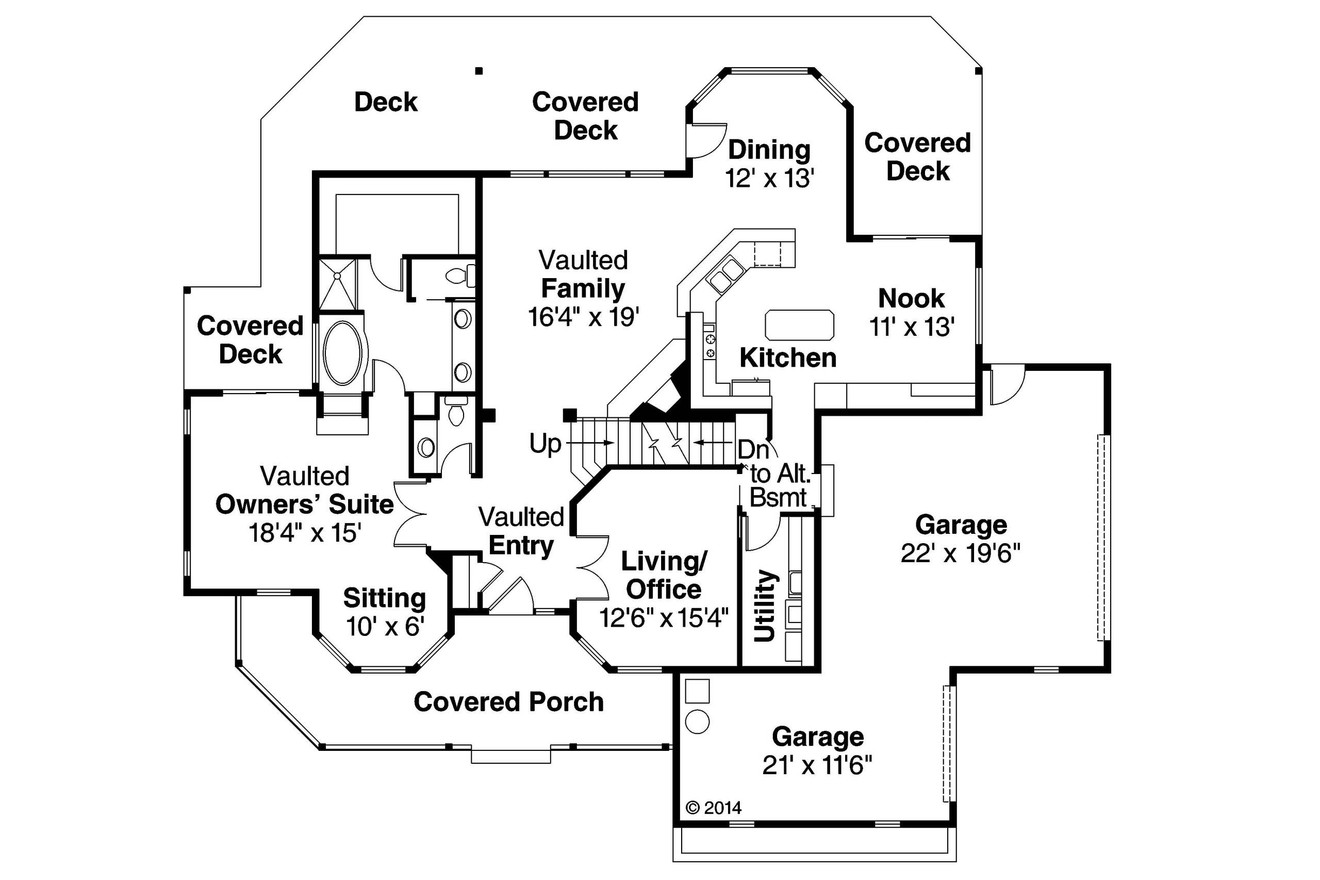

  • Country House Plan - Heartwood 10-300 - 1st Floor Plan
1 of 6

At a Glance

  • Square Footage: Total Living 2486 Square Feet
  • Bedrooms 3 Bedrooms
  • Baths Full 2 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 3 Car Garage

More About The Plan

Floor plan

1 of 2
Country House Plan - Heartwood 10-300 - 1st Floor Plan Icon_ionic-ios-expand
Contact us icon

Contact ADI Client Support Specialist

Contact ADI Experts

Have questions? Help from our customer support specialists is just a click away.

Plan Name: Heartwood
Plan Number: 10-300
Your submission has been received!
item-icon

Free modification quote

Call Us 541-461-2082 or fill out our form.

Get Started
item-icon

Cost to build report

How Much Will This Plan Cost To Build?

Find Out
A single review set of the construction drawings marked Not For Construction and do not include a license to build. Upgrade to a licensed construction package or sign on for modifications within 1 year of purchase and received a 100% upgrade credit.
Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.
Best Value!
A digital copy of the construction drawings in a PDF format (non-modifiable, print only). Includes a single build license with permissions to make copies of the plan locally as needed. The PDF Print Package is emailed saving shipping costs and time.
A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.
A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Masters are emailed saving shipping costs and time.
Unlimited Builds!
A digital plan package which includes both the PDF Master and CAD Master (DWG) and includes an unlimited build license.

Select a Foundation type

Standard

Select a Wall type

Standard
1
This option is not available for package '1 Set Study Package'
$0.00
$0.00
Quantity of Additional Sets
1
$0.00
Subtotal of Plan Package and Options
$0.00
GetQuote

Free modification quote

Are you looking for additional
plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 541-461-2082

Adding to Cart… The item has been added

Plan Details

Basic Details

living sq ft:

2486 sq ft

1st floor sq ft:

1929 sq ft

2nd floor sq ft:

557 sq ft

bonus sq ft:

230 sq ft

garage sq ft:

754 sq ft

dimensions:

72'-0"W × 59'-0"D

building height:

31'-0"

bedrooms:

3

full baths:

2

half baths:

1

floors:

2

primary style:

Country

secondary styles:

Farmhouse, Traditional

collections:

Luxury House Plans, 3 Bedroom House Plans, 2 Story House Plans

Building Details

primary foundation:

Crawl Space

alternate foundations:

Concrete Slab, Basement

building lot type:

Corner Lot, Level Lot

primary roof pitch:

10/12

roof framing:

Truss

snow roof load:

30 psf.

primary wall type:

2x6 Wood Frame

alternate wall types:

2x4 Wood Frame

exterior wall material:

Brick/Siding

exterior & porch features:

Covered Porch, Deck, Extended Outdoor Living, Wrap Around Porch

Interior Details

main floor ceiling height:

9'-0"

kitchen features:

Breakfast Nook/Dining Area, Eating Bar or Peninsula, Kitchen Island, Large Kitchen, Luxurious Kitchen, Walk-In or Wall Pantry

utility room features:

Close to Kitchen or Garage, Main Floor Utility Room

master suite features:

Exterior Access, Fireplace, Luxurious Master Bathroom, Main Floor Master Suite, Private Toilet, Separate From Other Bedrooms, Separate Tub & Shower, Sitting Room, Walk In Closet

interior features:

Bonus Room, Casual or Open Style Living Room, Den, Office, Library, or Study, Family Room, Fireplace/Wood Stove, Formal Dining Room, Formal Living Room or Parlor

Garage

garage:

3 Cars

garage type:

Attached

garage orientation:

Side Entry

garage features:

Oversized
