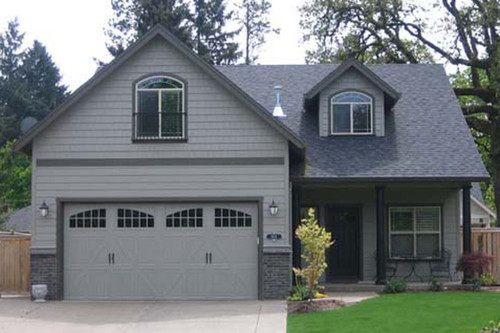

  • Craftsman House Plan - Eastham 30-622 - Front Exterior
  • Craftsman House Plan - Eastham 30-622 - Front Exterior
  • Craftsman House Plan - Eastham 30-622 - Rear Exterior
  • Craftsman House Plan - Eastham 30-622 - Left Exterior
  • Craftsman House Plan - Eastham 30-622 - Right Exterior
1 of 7

At a Glance

  • Square Footage: Total Living 1902 Square Feet
  • Bedrooms 3 Bedrooms
  • Baths Full 2 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 3 Car Garage

More About The Plan

Floor plan

1 of 2

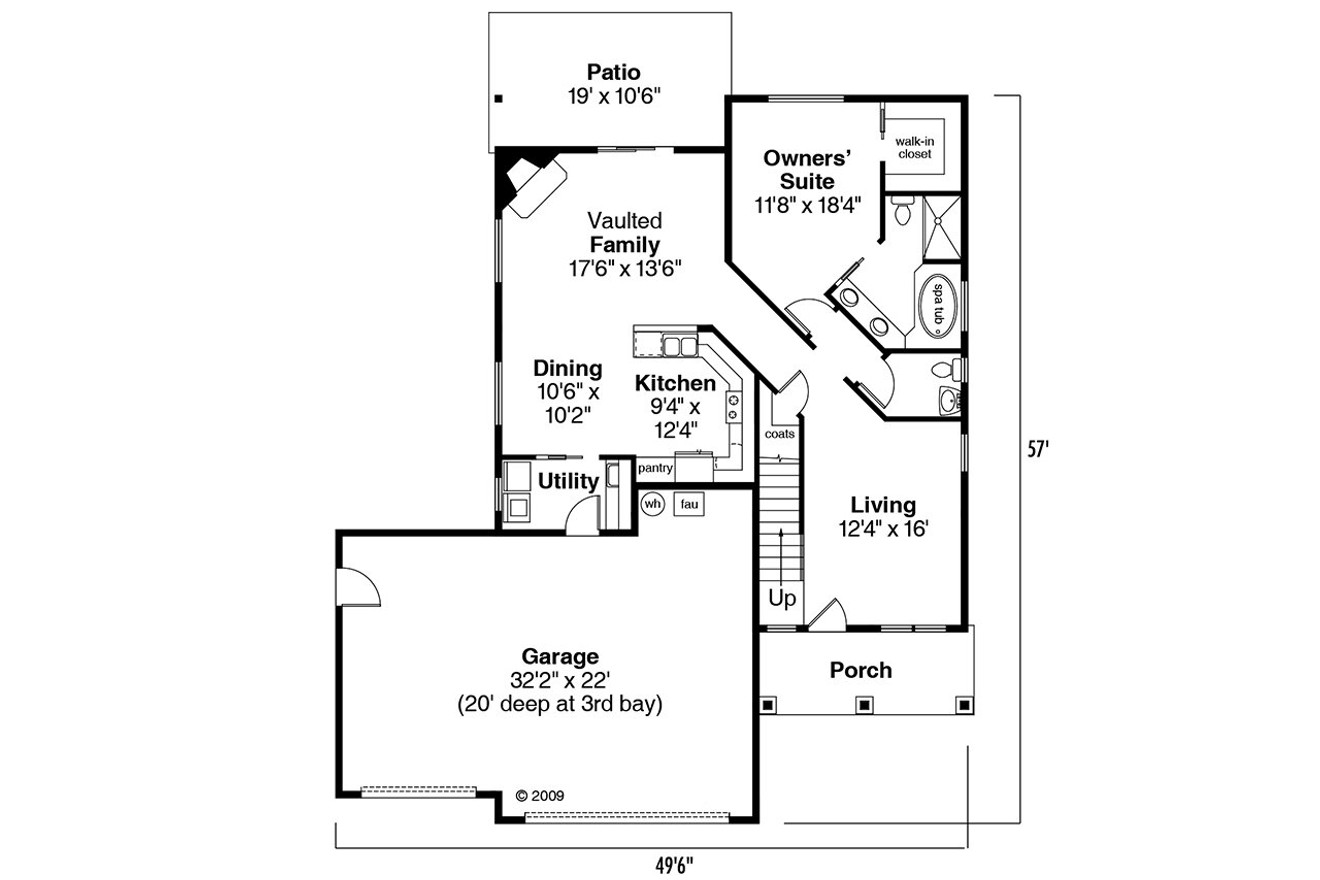

Craftsman House Plan - Eastham 30-622 - 1st Floor Plan Icon_ionic-ios-expand
Contact us icon

Contact ADI Client Support Specialist

Contact ADI Experts

Have questions? Help from our customer support specialists is just a click away.

Plan Name: Eastham
Plan Number: 30-622
Your submission has been received!
item-icon

Free modification quote

Call Us 541-461-2082 or fill out our form.

Get Started
item-icon

Cost to build report

How Much Will This Plan Cost To Build?

Find Out
A single review set of the construction drawings marked Not For Construction and do not include a license to build. Upgrade to a licensed construction package or sign on for modifications within 1 year of purchase and received a 100% upgrade credit.
Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.
Best Value!
A digital copy of the construction drawings in a PDF format (non-modifiable, print only). Includes a single build license with permissions to make copies of the plan locally as needed. The PDF Print Package is emailed saving shipping costs and time.
A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.
A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Masters are emailed saving shipping costs and time.
Unlimited Builds!
A digital plan package which includes both the PDF Master and CAD Master (DWG) and includes an unlimited build license.

Select a Foundation type

Standard

Select a Wall type

Standard
1
This option is not available for package '1 Set Study Package'
$0.00
$0.00
Quantity of Additional Sets
1
$0.00
Subtotal of Plan Package and Options
$0.00
GetQuote

Free modification quote

Are you looking for additional
plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 541-461-2082

Adding to Cart… The item has been added

Plan Details

Basic Details

living sq ft:

1902 sq ft

1st floor sq ft:

1298 sq ft

2nd floor sq ft:

604 sq ft

bonus sq ft:

321 sq ft

garage sq ft:

757 sq ft

dimensions:

49'-6"W × 57'-0"D

building height:

24'-6"

bedrooms:

3

full baths:

2

half baths:

1

floors:

2

primary style:

Craftsman

secondary styles:

Country, European

collections:

Builder House Plans, House Plans with Photos, 3 Bedroom House Plans, 2 Story House Plans, Narrow Lot House Plans, Small House Plans

Building Details

primary foundation:

Crawl Space

alternate foundations:

Concrete Slab, Basement

building lot type:

Narrow Lot (<45'), Level Lot

primary roof pitch:

10/12

roof framing:

Truss

snow roof load:

25 psf.

primary wall type:

2x6 Wood Frame

alternate wall types:

2x4 Wood Frame

exterior wall material:

Stone/Siding

exterior & porch features:

Covered Patio, Covered Porch

Interior Details

main floor ceiling height:

9'-0"

kitchen features:

Breakfast Nook/Dining Area, Eating Bar or Peninsula

utility room features:

Close to Kitchen or Garage, Main Floor Utility Room, Mudroom or Mudhall

master suite features:

Main Floor Master Suite, Separate From Other Bedrooms, Separate Tub & Shower, Walk In Closet

interior features:

Bonus Room, Family Room, Fireplace/Wood Stove, Formal Living Room or Parlor

Garage

garage:

3 Cars

garage type:

Attached
