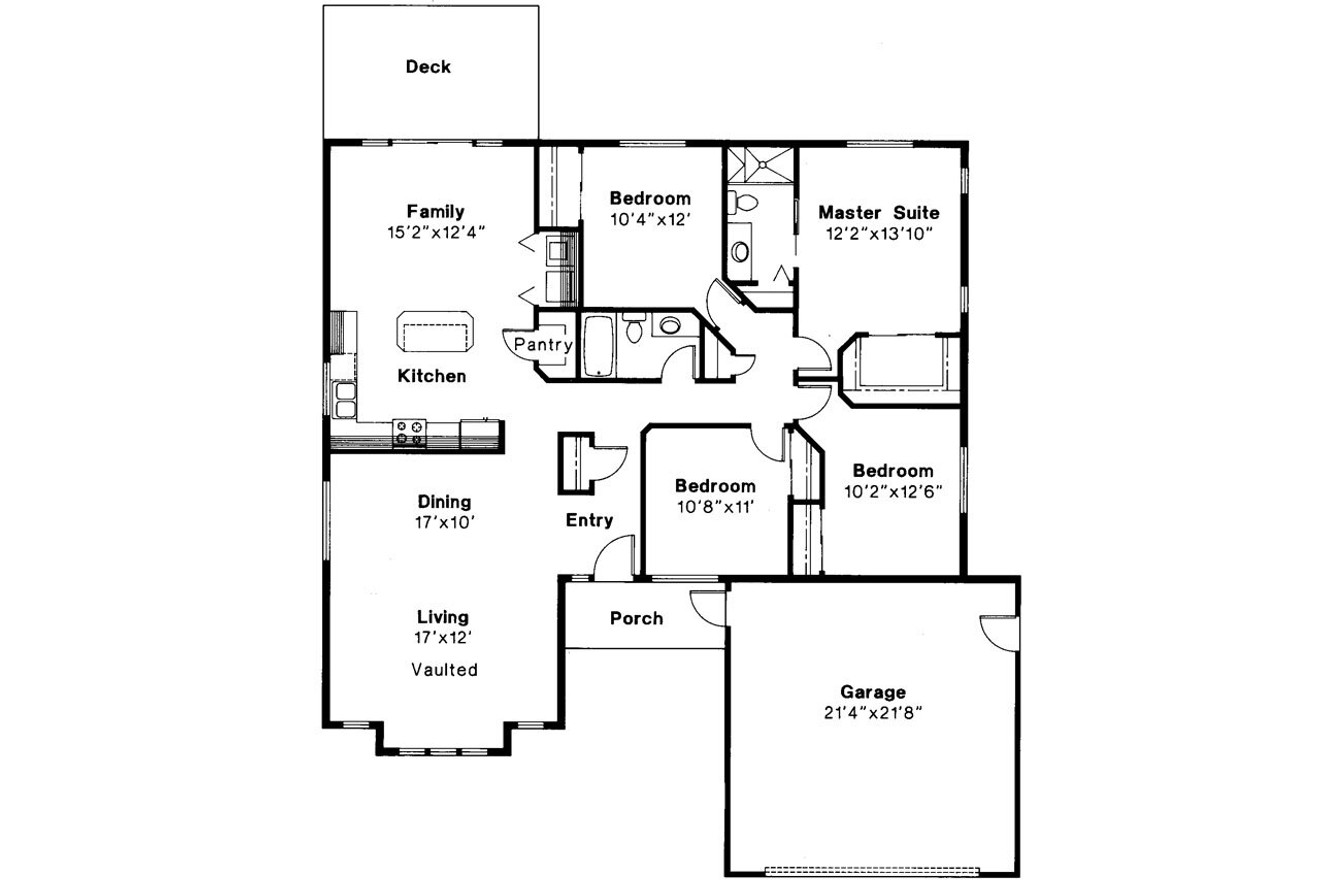

  • Ranch House Plan - Baldwin 30-019 - 1st Floor Plan

At a Glance

  • Square Footage: Total Living 1793 Square Feet
  • Bedrooms 4 Bedrooms
  • Baths Full 2 Full Baths
  • Floors 1 Floors
  • Garage Bays Min 2 Car Garage
