At a Glance

  • Square Footage: Total Living 2124 Square Feet
  • Bedrooms 4 Bedrooms
  • Baths Full 2 Full Baths
  • Floors 1 Floors
  • Garage Bays Min 2 Car Garage

More About The Plan

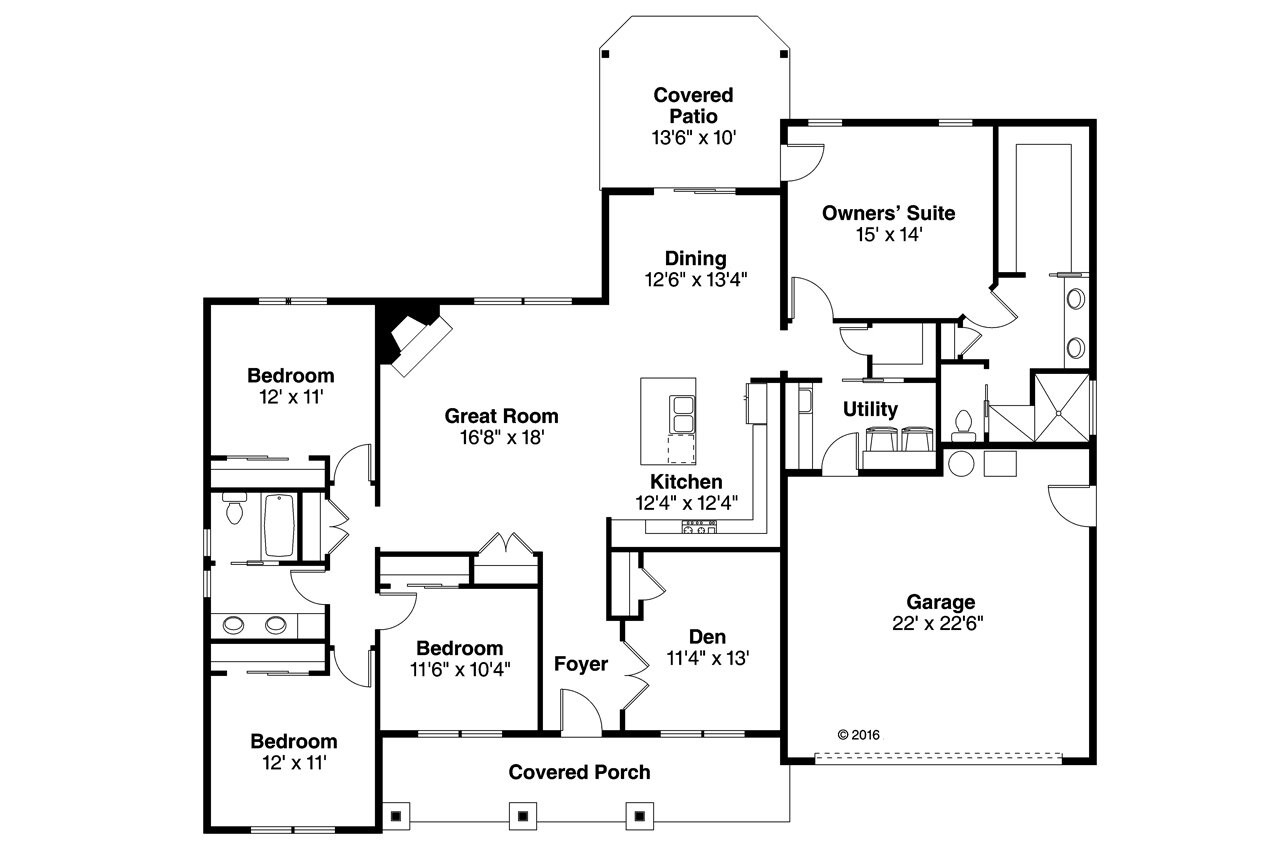

Floor plan
