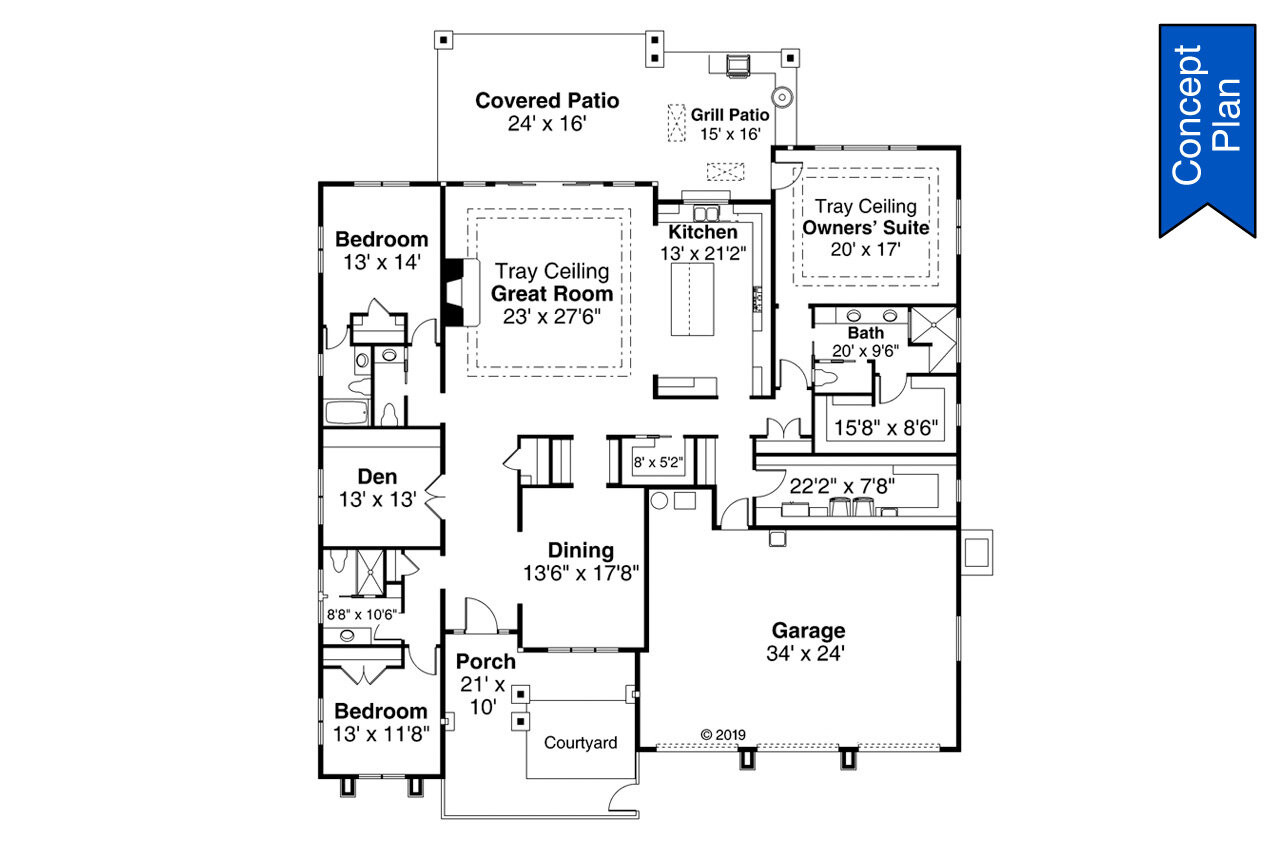

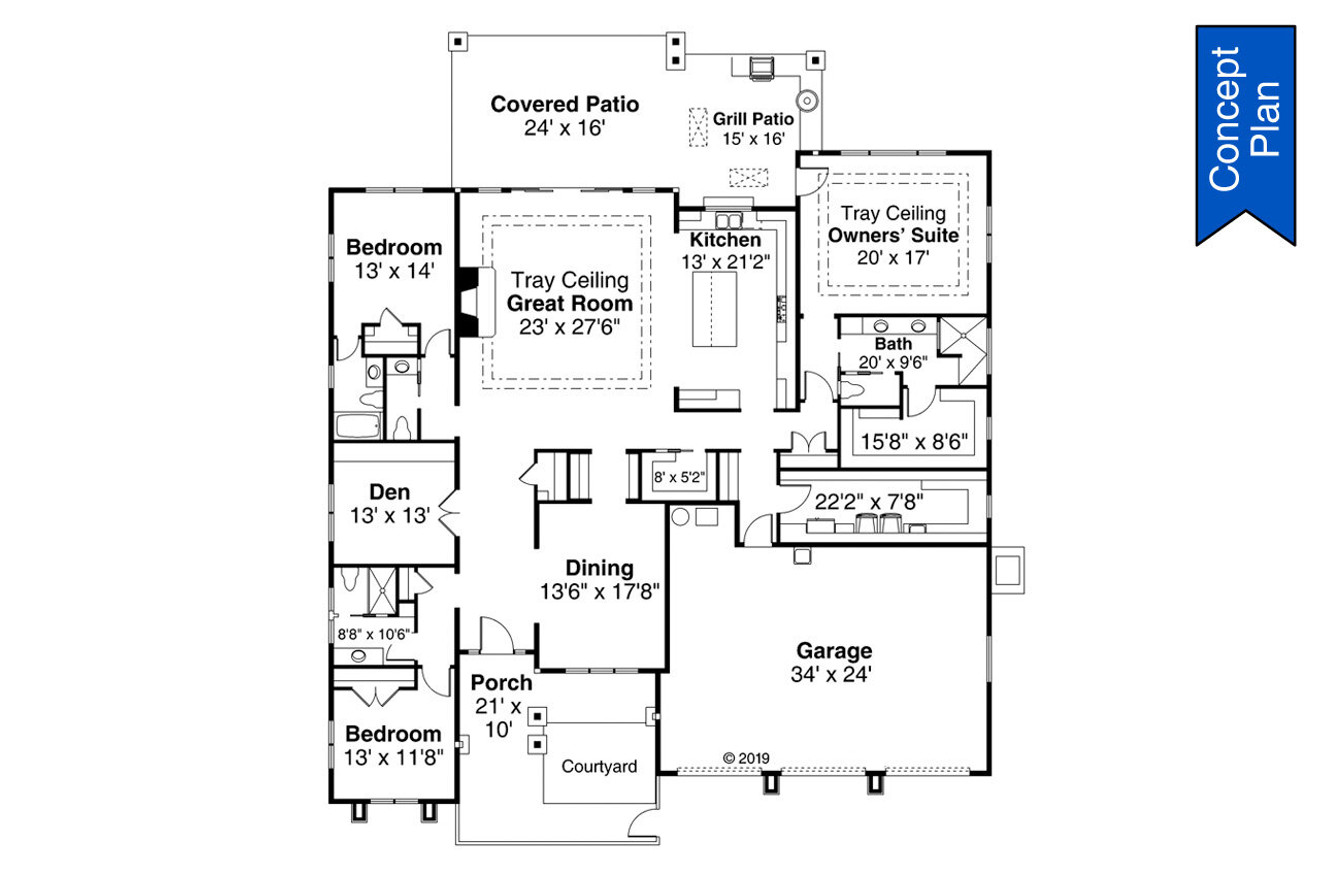

The Elmwood is an eye-catching ranch-style concept plan. It's one story design provides homeowners' with a blend of formal and informal spaces. Off the entry, is the formal dining room along with access to one of the secondary bedrooms and the den which could be furnished as a home office. At the end of the entry hall, the floor plan opens up to the informal great room and kitchen. The sleeping areas are nicley separated with the secondary bedrooms on the left side of the floor plan which the owners' suite fills the right and features a private bathroom with walk-in shower, dual vanity, and large walk-in closet. This Elmwood design is a great choice for those looking to have the construction documents completed locally to account for specific building site or department requirements.
Elmwood 31-166
Photographs may show modifications made to plans. Copyright owned by designer.
At a Glance
-
3434
Square Feet
-
3
Bedrooms
-
3
Full Baths
-
1
Floors
-
3
Car Garage
More About The Plan
Contact ADI Client Support Specialist
Contact ADI Experts
Have questions? Help from our customer support specialists is just a click away.
Let’s be social
Connect with us for the latest from HPC
Plan Details
Basic Details
living sq ft:
3434 sq ft
1st floor sq ft:
3434 sq ft
garage sq ft:
893 sq ft
dimensions:
71'-0"W × 82'-0"D
building height:
23'-8"
bedrooms:
3
full baths:
3
half baths:
1
floors:
1
primary style:
Ranch
secondary styles:
Contemporary, Prairie
collections:
Concept House Plans, 1 Story House Plans, 3 Bedroom House Plans
Designer Notes
Concept plan package includes PDF and DWG files of the: Elevations Floor Plan (s) Roof Outline The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
