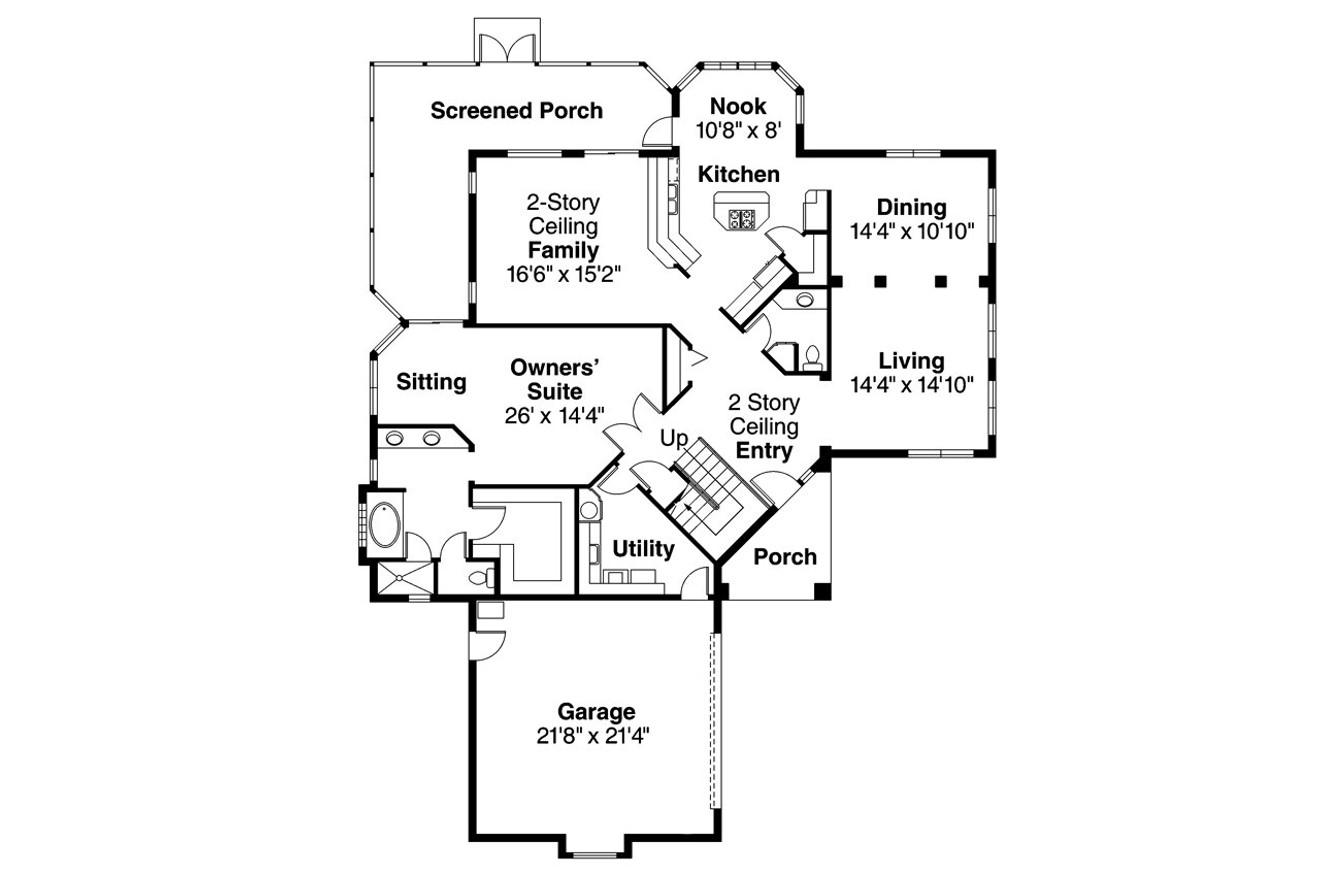

  • Southwest House Plan - Southaven 11-038 - 1st Floor Plan
1 of 6

At a Glance

  • Square Footage: Total Living 2869 Square Feet
  • Bedrooms 4 Bedrooms
  • Baths Full 3 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 2 Car Garage
