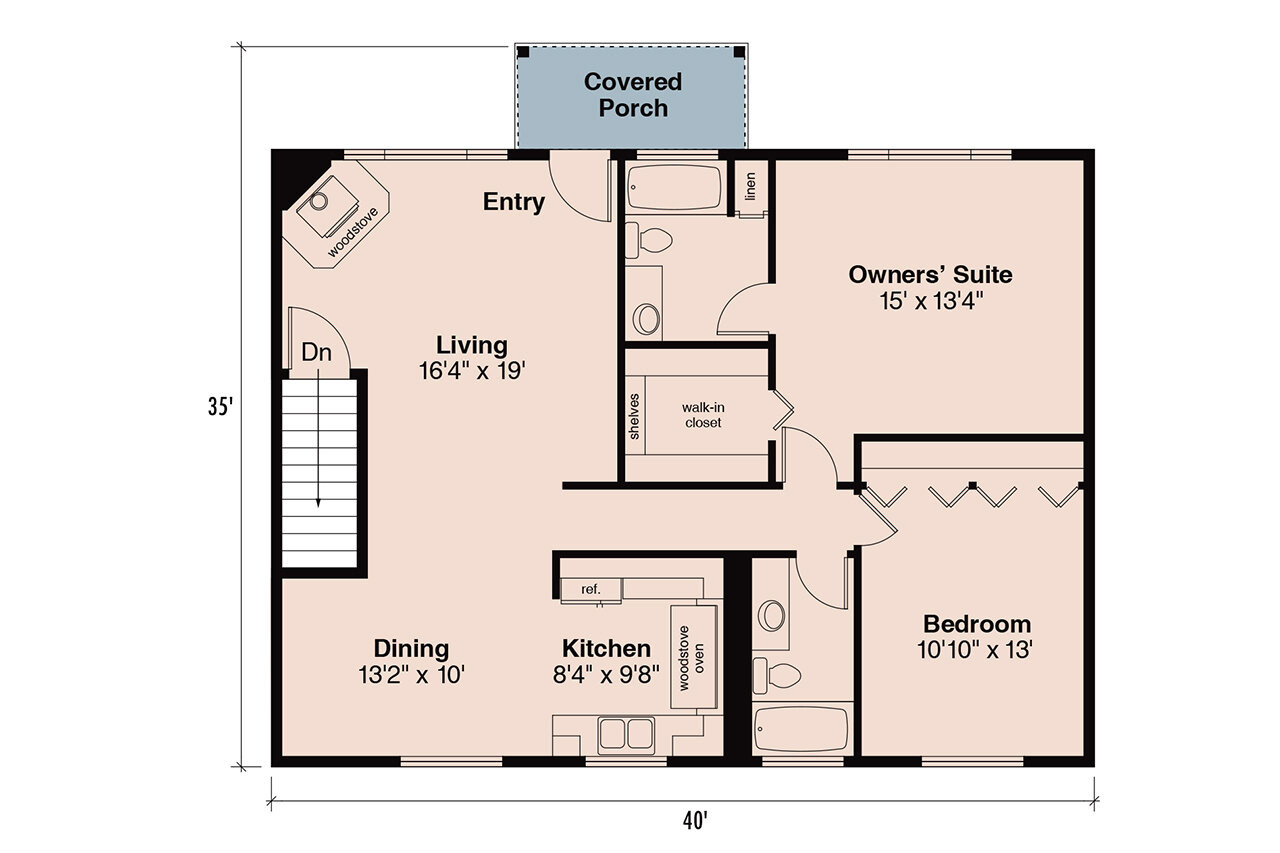

Designed for a sloped lot this unique garage plan has a full 1100 square foot apartment on the second floor. The main level is filled with the 2 car garage and shop. An optional half bathroom could be added to the garage level. The staircase to the second floor is separated from the shop. Upstairs the apartment offers great room style living. Those who prefer to use natural resources on site will appreciate the woodstove in the living room as well as the woodstove oven in the kitchen. The right side of the floor plan is filled with two bedrooms. The owners' suite boasts a private bathroom and walk-in closet, while the secondary bedroom shares its full bathroom. This garage with living could serve as a year round residence for those looking for a small home.
Garage w/Living 20-036
Photographs may show modifications made to plans. Copyright owned by designer.
At a Glance
-
2362
Square Feet
-
2
Bedrooms
-
2
Full Baths
-
2
Floors
-
2
- 3
Car Garage
More About The Plan
Contact ADI Client Support Specialist
Contact ADI Experts
Have questions? Help from our customer support specialists is just a click away.
Let’s be social
Connect with us for the latest from HPC
Plan Details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Concept Plan Packages:
Includes PDF and DWG files of the:
Elevations
Floor Plan (s)
Roof Outline
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to Plan Buying?
Garage w/Living - 20-036
Associated Designs
$700.00
- SKU:
- 101 - 20-036
- Plan Number:
- 76829
- Date Added:
- 05/15/2023
- Date Modified:
- 01/25/2024
- Designer:
- info@associateddesigns.com; jessica@associateddesigns.com
- Designer Plan Title:
- 20-036
- Plan SKU:
- 20-036
- Plan Name:
- Garage w/Living
- Note Plan Packages: Plans Now:
- Downloadable!
- Note Plan Packages: PDF Print Package:
- Best Value!
- Note Plan Packages: Master Builder CAD Set:
- Unlimited Builds!
- Pricing Set Title:
- A [801 - 1200]
- Family Plan:
- 20-008
- Structure Type:
- Garage
- Square Footage: Total Living:
- 2362
- Square Footage: 1st Floor:
- 1162
- Square Footage: Garage:
- 1200
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 2
- BEDROOMS_filter:
- 2
- Baths Full:
- 2
- FULL BATHROOMS_filter:
- 2
- Ridge Height:
- 26'6"
- Overall Exterior Depth:
- 35
- Overall Exterior Width:
- 40
- Available Foundations:
- Daylight/Walk-out Basement
- Default Foundation:
- Daylight/Walk-out Basement
- Available Walls:
- 2x4 Wood Frame
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Lap Siding
- Lot Slope:
- Uphill Sloping Lot
- Roof Pitch:
- 6/12
- Primary Style:
- Traditional
- Secondary Styles:
- Country
- Master Suite Features:
- Main Floor Master Suite
- Master Suite Features:
- Walk In Closet
- Master Suite Features:
- Combination Tub/Shower
- Interior Features:
- Casual or Open Style Living Room
- Interior Features:
- Fireplace/Wood Stove
- Garage Orientation:
- Garage Under
- Garage Orientation:
- Front Entry
- Garage Bays Min:
- 2
- Garage Bays Max:
- 3
- GARAGE BAYS_filter:
- 2
- Garage Features:
- w/Living Space
- Garage Features:
- Workshop or Workbench
- Styles:
- Traditional House Plans
- Styles:
- Country House Plans
- Collections:
- 2 Story House Plans
- Collections:
- Sloped Lot House Plans
- Collections:
- Garage, Garage w/Living, Carports
- Product Rank:
- 501
- Max Price:
- 2450.00
- Min Price:
- 700.00
- Regions:
- Northwest House Plans/Oregon Home Plans
