Concord 31-144

  • Craftsman House Plan - Concord 31-144 - Front Exterior Icon_ionic-ios-expand
  • Craftsman House Plan - Concord 31-144 - Front Exterior Icon_ionic-ios-expand
  • Craftsman House Plan - Concord 31-144 - Rear Exterior Icon_ionic-ios-expand
  • Craftsman House Plan - Concord 31-144 - Left Exterior Icon_ionic-ios-expand
  • Craftsman House Plan - Concord 31-144 - Right Exterior Icon_ionic-ios-expand
  • Craftsman House Plan - Concord 31-144 - 1st Floor Plan Icon_ionic-ios-expand
  • Craftsman House Plan - Concord 31-144 - 2nd Floor Plan Icon_ionic-ios-expand

Photographs may show modifications made to plans. Copyright owned by designer.

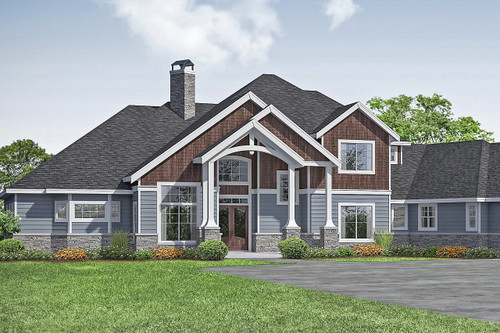

  • Craftsman House Plan - Concord 31-144 - Front Exterior
  • Craftsman House Plan - Concord 31-144 - Front Exterior
  • Craftsman House Plan - Concord 31-144 - Rear Exterior
  • Craftsman House Plan - Concord 31-144 - Left Exterior
  • Craftsman House Plan - Concord 31-144 - Right Exterior

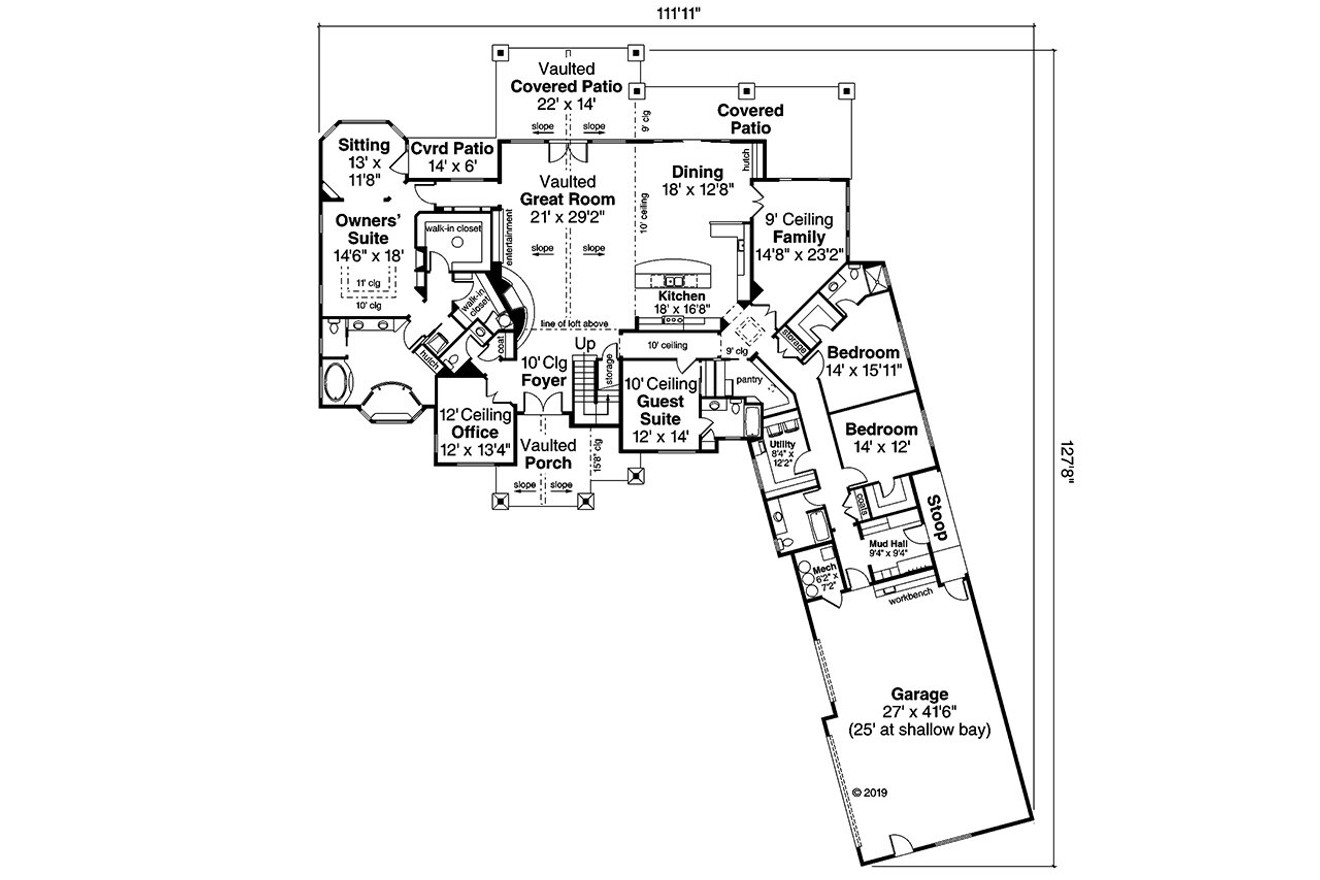

  • Craftsman House Plan - Concord 31-144 - 1st Floor Plan

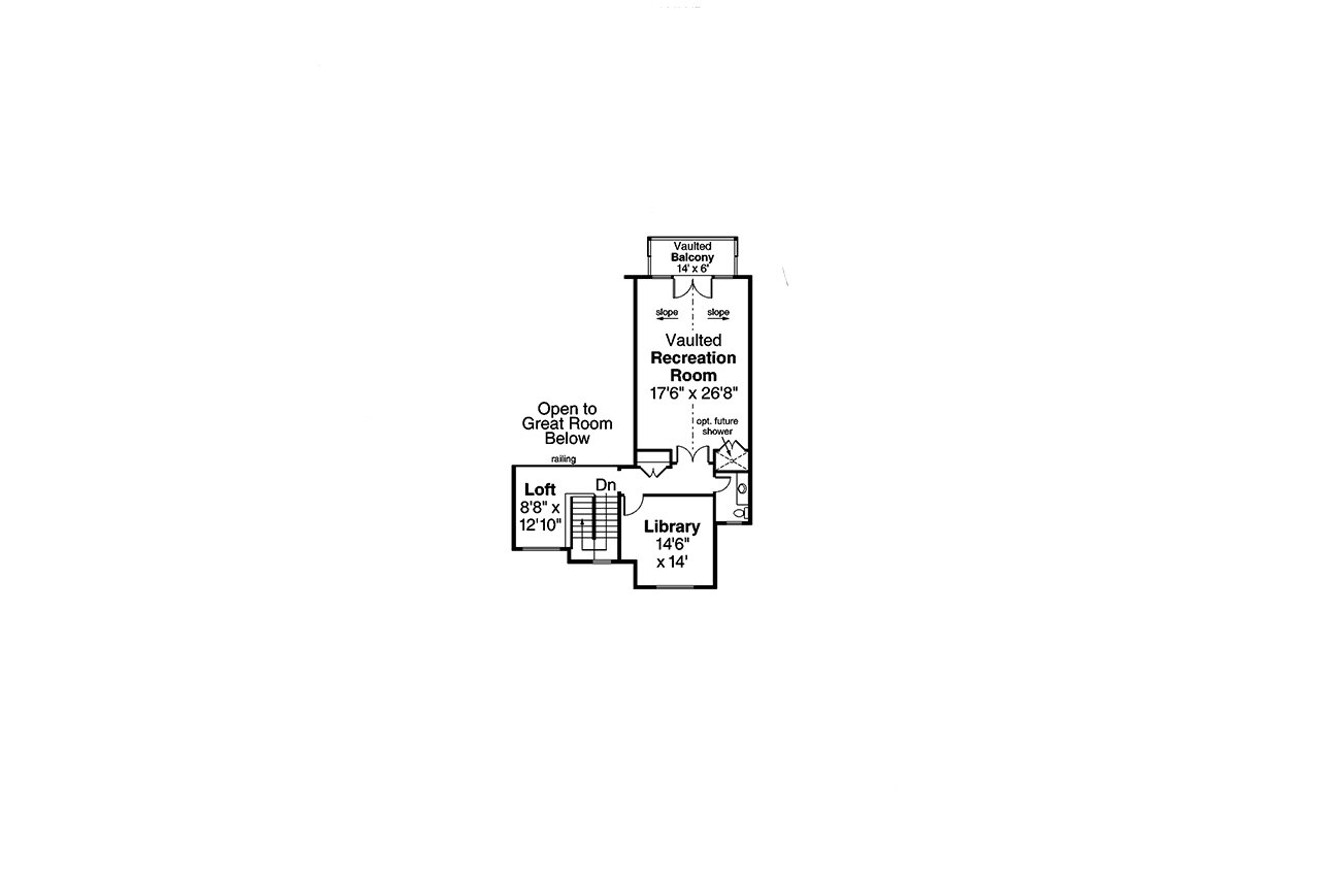

  • Craftsman House Plan - Concord 31-144 - 2nd Floor Plan

At a Glance

  • Square Footage: Total Living 5558 Square Feet
  • Bedrooms 4 Bedrooms
  • Baths Full 4 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 3 Car Garage

More About The Plan

Floor plan

Craftsman House Plan - Concord 31-144 - 1st Floor Plan Icon_ionic-ios-expand
Craftsman House Plan - Concord 31-144 - 2nd Floor Plan Icon_ionic-ios-expand
Contact us icon

Contact ADI Client Support Specialist

Contact ADI Experts

Have questions? Help from our customer support specialists is just a click away.

Plan Name: Concord
Plan Number: 31-144
Your submission has been received!
item-icon

Free modification quote

Call Us 541-461-2082 or fill out our form.

Get Started
item-icon

Cost to build report

How Much Will This Plan Cost To Build?

Find Out
GetQuote

Free modification quote

Are you looking for additional
plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 541-461-2082

Adding to Cart… The item has been added

Plan Details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

Construction Drawing Packages:

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.

Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.

Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.

Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Concept Plan Packages:

Includes PDF and DWG files of the:

Elevations
Floor Plan (s)
Roof Outline

The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).

New to Plan Buying?

What You Need to Know About Purchasing Plans

You are about to embark on an exciting process, enjoy it!



Here is what you need to know about purchasing house plans from Associated Designs:
 • Unsure about what is included with our plan packages? Check out What's in a Plan Set? above.
 • The designs are not engineered. Check with the building department where the structure is being constructed to find out if an engineer's review is required. We can help facilitate engineering for your plan if you are planning on building in the Pacific Northwest.
 • Your building department may also require a site plan of your lot be included with your submittal for a building permit. We can help! Site Plan services are provided separately and are an extension of our Custom Design Services.

 • Please read and understand your licensing agreement. This will clearly define what you can and can not do with your construction documents.
 • Plan Sales are Final. If you find that you are unable to build the home, garage, or duplex you purchased give us a call. Our customer support specialists can help you find a new design.
 • Unless purchasing an additional build license (one time additional or multi-build additional) you may build the structure one time. Ownership of the construction documents can not be transferred or sold.
 • Unless purchasing a printable package, you may not make additional copies of the plan without the permission from Associated Designs.

Plan Packages Explained

Ready to purchase plans and unsure which construction package to choose? We hope the following can help you decide. Please note: Plan packages vary and may not be available on all plans.


1 Set Study Package


This is a single set of prints will allow you to completely review the plan, get accurate quotes for construction costs, and contemplate custom design changes you may wish to make. Study sets are marked Not For Construction and without the license necessary to legally build the home. Don't worry though, we allow a 100% upgrade credit towards a buildable licensed construction package within one year of your 1 Set Study Package purchase.



5 Set + Print PDF

This is licensed print package that includes a print-only PDF copy of the construction documents printed and shipped to you. The Print PDF is provided as an attachment and delivered via email.



PDF Print Package


This PDF package is a non-modifiable, print only PDF file that saves time, gas, money, and paper! Many contractors and building jurisdictions are working with digital formats of the construction documents. The PDF print package allows for you or your contractor to distribute the construction documents to sub-contractors, use electronic submittals to apply for the building permit, and print the sets you need when you need them.



Plans Now

Don't wait - get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license - electronically signed and emailed to you immediately after placing your order - with permissions to make copies of the plan locally as needed.



PDF Master


An unlocked modifiable PDF file. Same conveniences as the PDF print package with the added benefit which allows your local professional to make engineering mark-ups or design changes using compatible software.



CAD Master


By using CAD compatible software that use .dwg or .dxf file formats enables you or a local professional to modify the construction documents and integrate those changes throughout the entire plan. Once the modifications or engineering is incorporated into your design, you can reproduce as many copies of the plan needed to build the structure.



Master Builder Deluxe Set



Get the works with the Master Builder Deluxe CAD Set! Included with this plan package is the PDF Master, CAD Master, and an Unlimited Build License. The Unlimited Build License will allow for the design to be constructed as many times as the end user specified on the agreement would care to. Please note: the Unlimited Build License is NOT transferrable.




Still unsure which package to choose? You may want to discuss this with your builder or give us a call.

How to Evaluate a Plan

When looking at plans, most often it's the exterior profile that will first grab your attention. You love the exterior, it's exactly what you envisioned, but what about the inside of the design? It's important to spend some time and digest the design's interior elements. Here are a few considerations to think about when evaluating if this is the right plan for you.


 • First off, think about how you live in your home.
 • Do you or your family prefer to have one or two places to gather all together, or do you prefer to have more private places within your home.
 • Consider how you move through the home in your day to day life. Visually walk through the front door, what do you walk through or by? Do the same from your back door and garage entrances.
 • Is your family life more formal or casual and do the living spaces of the design complement your lifestyle?
 • Will your existing furniture fit within the spaces?
 • If you have a family, do you want the master suite close to the secondary bedrooms or separated?
 • Do you entertain? Are there elements within the floor plan that allow for entertaining with ease?
 • How do you take care of laundry? Would you prefer the laundry room to be close by the kitchen, garage, or close to the bedrooms?
 • Storage space? Is there enough?
 • Consider your access to the outside? Do you want to extend your indoor living to the outside? Is there adequate porches or patios for how you want to enjoy your yard? Where will you place your grill or patio furniture?
 • The view? What are you going to see when you look out your windows? Need more privacy or need more accessibility to a view?
 • Make sure your garage will accommodate your cars, RV, or boat. Adequate storage? Do you want or need a door to the exterior beyond the opening garage doors? Utility sink? Space for an additional refrigerator or freezer?
 • Consider things about your current home/residence that you don't like. By pin pointing these areas of your current home that you don't care for, you can make sure they are addressed in the next.

After reviewing giving it careful consideration you may find that the plan would be perfect with a few design changes. Associated Designs can certainly help you with that with our customization services.

The Customization Process



So you've found that almost perfect design, and find yourself saying, "if only". Whether it's changing the size of a room, adding space or features, or moving things around, we can help you take that almost perfect design and make it perfect for you.



It's exciting to create a plan to fit your exact needs and wants whether it's your home, garage or even a potential investment property.



When you locate your plan, select the "Get Started" button located on the plan detail page. Here you will be able to share with us the changes to the interior and/or the exterior of the design. You can even upload a sketch if you have one. Complete the necessary contact information and select "Submit Request".



Associated Designs' design team will evaluate your changes and provide a quote within one business days. Associated Designs is a "true quote" plan website. That means we will not mark-up the modification quote, we want to help keep costs down for you!

Concord - 31-144

$0.00
(No reviews yet) Write a Review
SKU:
101 - 31-144
Plan Number:
99415
Pricing Set Title:
Luxury Series
Designer Plan Title:
31-144
Date Added:
05/20/2019
Date Modified:
08/25/2023
Designer:
info@associateddesigns.com
Creation Date:
05/2019
Plan Name:
Concord
Note Plan Packages: Plans Now:
PDF Download!
Structure Type:
Single Family
Best Seller (Rank #):
10000
Square Footage: Total Living:
5558
Square Footage: Garage:
1182
Square Footage: 1st Floor:
4510
Square Footage: 2nd Floor:
1048
Floors:
2
FLOORS_filter:
2
Bedrooms:
4
BEDROOMS_filter:
4
Baths Full:
4
FULL BATHROOMS_filter:
4
Baths Half:
2
HALF BATHROOMS_filter:
2
Ridge Height:
34'
Overall Exterior Depth:
111.11
Overall Exterior Width:
127.8
Main Floor Ceiling Height:
10'
Second Floor Ceiling Height:
9'
Available Foundations:
Crawl Space
Available Foundations:
Concrete Slab
Available Foundations:
Basement
Default Foundation:
Crawl Space
Available Walls:
2x6 Wood Frame
Default Wall:
2x6 Wood Frame
Ext Wall Material:
Lap Siding, Shingles, Stone
Lot Type:
Corner Lot
Lot Type:
Rear View
Lot Type:
View Lot
Lot Slope:
Level Lot
Roof Framing:
Combination Stick/Truss
Snow Roof Load:
25.00
Roof Pitch:
9/12
Primary Style:
Craftsman
Secondary Styles:
Farmhouse
Secondary Styles:
Ranch
Collections:
Luxury House Plans
Master Suite Features:
Exterior Access
Master Suite Features:
Fireplace
Master Suite Features:
Luxurious Master Bathroom
Master Suite Features:
Main Floor Master Suite
Master Suite Features:
Private Toilet
Master Suite Features:
Separate From Other Bedrooms
Master Suite Features:
Separate Tub & Shower
Master Suite Features:
Sitting Room
Master Suite Features:
Walk In Closet
Master Suite Features:
Walk-In Shower
Interior Features:
Bonus Room
Interior Features:
Casual or Open Style Living Room
Interior Features:
Den, Office, Library, or Study
Interior Features:
Family Room
Interior Features:
Fireplace/Wood Stove
Interior Features:
Great Room
Interior Features:
Guest Room, Suite, or Apartment
Interior Features:
Loft
Interior Features:
Recreation Room/Game Room
Interior Features:
Storage
Kitchen Features:
Eating Bar or Peninsula
Kitchen Features:
Kitchen Island
Kitchen Features:
Large Kitchen
Kitchen Features:
Luxurious Kitchen
Kitchen Features:
Walk-In or Wall Pantry
Utility Room Features:
Close to Bedrooms
Utility Room Features:
Close to Kitchen or Garage
Utility Room Features:
Main Floor Utility Room
Utility Room Features:
Mudroom or Mudhall
Garage Type:
Attached
Garage Orientation:
Front Entry
Garage Orientation:
Side Entry
Garage Bays Min:
3
Garage Bays Max:
3
GARAGE BAYS_filter:
3
Garage Features:
Workshop or Workbench
Exterior & Porch Features:
Covered Patio
Exterior & Porch Features:
Covered Porch
Exterior & Porch Features:
Extended Outdoor Living
Styles:
Craftsman House Plans
Styles:
Ranch House Plans
Collections:
2 Story House Plans
Collections:
4 Bedroom House Plans
Collections:
View Lot House Plans
Styles:
Farmhouse Plans
Product Rank:
915
Plan SKU:
31-144

Introducing the Concord, a true embodiment of luxurious Craftsman living. With its striking architectural design featuring soaring gable ends and a grand entrance, this exceptional home redefines elegance. Boasting a spacious 5558 square foot floor plan, the Concord seamlessly blends formal and informal spaces, creating a harmonious flow throughout.

Upon entering the foyer, one is immediately greeted by the grandeur of 10' ceilings that set the tone for the entire residence. To the left, a set of French doors beckons you into a well-appointed home office, providing a private space for work or study. As you traverse further, the foyer leads to an awe-inspiring great room with vaulted ceilings that reach for the skies. A corner fireplace stands as a centerpiece, casting its warm embrace over the living area, dining space, and kitchen.

The boundaries between these spaces are defined by artful shifts in ceiling heights and the central island in the kitchen, maintaining an open concept while subtly distinguishing each area. Natural light bathes the great room through the rear wall, which can be seamlessly connected to the outdoors via French doors leading out to the vaulted covered patio. Leading out the dining room through a sliding glass door you find yourself on a connected covered patio, further expanding the access to be in touch with nature.

The kitchen of the Concord is a chef's haven, complete with an abundance of counter space, an island featuring a sink and eating bar, and a luxurious walk-in pantry only steps away, ensuring culinary delights are effortlessly created. Privacy is paramount in this home plan, with the bedrooms thoughtfully positioned for optimal separation. The master suite occupies the left wing of the home, boasting a tranquil sitting room with its own fireplace and access to a private patio – a sanctuary within a sanctuary.

The master suite further impresses with its double walk-in closet and a lavish en-suite replete with a walk-in shower, a soaking tub, dual vanities, and exclusive laundry appliances. Meanwhile, on the opposite side of the great room, two additional bedrooms offer comfort and privacy, with a generously sized laundry room, mud hall, and access to the attached 3-car garage completing this side of the home.

In the realm of Craftsman elegance, the Concord stands as an exemplary, harmonizing grandeur with functionality in an exquisite symphony of design.

Lodge Style House Plan - Coeur d'Alene 30-634 - Front Exterior
SQFT 6309 Floors 2 bdrms 3 bath 5 / 1 Garage 3
Plan Coeur d'Alene 30-634
View Details
wish-list-icon-white
info-white-icon
Country House Plan - Eganville 30-428 - Front Exterior
SQFT 3273 Floors 2 bdrms 4 bath 3 Garage 2 - 3
Plan Eganville 30-428
View Details
wish-list-icon-white
info-white-icon
Craftsman House Plan - Pacifica 30-683 - Front Exterior
SQFT 4090 Floors 2 bdrms 3 bath 3 / 2 Garage 3
Plan Pacifica 30-683
View Details
wish-list-icon-white
info-white-icon
Craftsman House Plan - Adelaide 31-285 - Front Exterior
SQFT 4810 Floors 2 bdrms 4 bath 4 / 1 Garage 3 - 4
Plan Adelaide 31-285
View Details
wish-list-icon-white
info-white-icon
Ranch House Plan - Foster 30-846 - Front Exterior
SQFT 1605 Floors 1 bdrms 4 bath 2 Garage 2
Plan Foster 30-846
View Details
wish-list-icon-white
info-white-icon
Lodge Style House Plan - Bentonville 30-275 - Front Exterior
SQFT 5651 Floors 2 bdrms 4 bath 5 / 1 Garage 2
Plan Bentonville 30-275
View Details
wish-list-icon-white
info-white-icon
Contemporary House Plan - Cliffdale 31-336 - Front Exterior
SQFT 3420 Floors 2 bdrms 2 bath 3 / 1 Garage 3
Plan Cliffdale 31-336
View Details
wish-list-icon-white
info-white-icon
European House Plan - Bentley 30-560 - Front Exterior
SQFT 4901 Floors 1 bdrms 4 bath 4 / 1 Garage 3
Plan Bentley 30-560
View Details
wish-list-icon-white
info-white-icon
Craftsman House Plan - Barnhart 30-946 - Front Exterior
SQFT 3815 Floors 2 bdrms 3 bath 2 / 1 Garage 2
Plan Barnhart 30-946
View Details
wish-list-icon-white
info-white-icon
European House Plan - Avalon 30-306 - Front Exterior
SQFT 5725 Floors 2 bdrms 4 bath 3 / 1 Garage 3
Plan Avalon 30-306
View Details
wish-list-icon-white
info-white-icon

1 Set Package

One printed set of construction drawings. Includes a single build license.

1 Set Study Package

A single review set of the construction drawings marked Not For Construction and do not include a license to build. Upgrade to a licensed construction package or sign on for modifications within 1 year of purchase and received a 100% upgrade credit.

3 Sets

Three printed sets of construction drawings. Includes a single build license.

3 Set Package

Three printed sets of construction drawings. Includes a single-build license.

4 Sets

Four printed sets of construction drawings. Includes a single build license.

3 Sets + PDF Print

Three printed sets of construction drawings plus a Print PDF (non-modifiable). Includes a single build license.

4 Set Package

Four printed sets of construction drawings. Includes a single build license.

5 Set + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Sets + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Set Package

Five printed sets of construction drawings. Includes a single build license.

5 Set with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

5 Sets with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

6 Set Package

Six printed sets of construction drawings. Includes a single build license.

8 Set + Print PDF

Eight printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

8 Set Package

Eight printed sets of construction drawings. Includes a single build license.

8 Sets with PDF

Eight printed sets of construction drawings plus a PDF copy of the construction drawings.

CAD + PDF

A digital plan package which includes both CAD (DWG) and PDF Files. Includes a single build license which allow the plans to be modified and reproduced locally.

CAD + PDF Unlimited

A digital plan package which includes both CAD (DWG) and PDF Files and includes an unlimited build license.

CAD Masters

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Masters are emailed saving shipping costs and time.

CAD Package

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

CAD w/Multi-Use License

A digital copy of the construction drawings in a DWG file format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

Concept Plan Package

Includes both PDF and DWG files of the Elevations, Floor Plan(s), and Roof Outline which can be used by a local design professional to complete the construction documents to site specific requirements, conditions and building practices. Includes a non-transferable unlimited build license.

Construction Package

Five printed sets of construction drawings that include a material list and a PDF (small size).

Master Builder CAD Set

A digital plan package which includes both the PDF Master and CAD Master (DWG) and includes an unlimited build license.

PDF Bid Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF File

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Master

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Print Package

A digital copy of the construction drawings in a PDF format (non-modifiable, print only). Includes a single build license with permissions to make copies of the plan locally as needed. The PDF Print Package is emailed saving shipping costs and time.

PDF Print Package + 1 Set

One printed set of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 2 Sets

Two printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 3 Sets

Three printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 4 Sets

Four printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 5 Sets

Five printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Study Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF Unlimited

A digital copy of the construction drawings in a PDF format that includes an unlimited build license.

PDF w/Multi-Use License

A digital copy of the construction drawings in a PDF format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. This package is emailed saving shipping costs and time.

Plan Package

A digital plan package which includes the PDF Master, CAD Master (DWG), and Sketchup Pro Files (.layout). This package is emailed saving shipping costs and time.

Plans Now

Don’t wait – get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license – signed during check out – with permissions to make copies of the plan locally as needed.

Preliminary Set

One printed set of the elevations and floor plan(s) for study and review. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Pricing Package

One printed set of the elevations and floor plan(s) plus a material list.

Reproducible Vellums

One printed set of construction drawings on transparent paper. Includes a single build license with permissions to modify and reproduce the plans. Modifications to this plan package are made by hand.

Review Set

A digital study set of the elevations and floor plan(s) only. The review set is not to scale. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via Email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

5 Set Package Kit

Bundled savings! Includes 5 Print Sets of construction drawings, a PDF formatted to print 11’x17”, and a material list. Please note that the PDF may not be to scale.

!
