This simple One Story Craftsman garage plan combines functionality with timeless architectural appeal, making it an excellent fit for properties seeking a clean, classic look. The structure is designed with traditional style elements, including crisp shake siding, broad trim, and a gently sloped hipped roof finished in textured shingles that offer both beauty and durability.
Garage 20-246
Photographs may show modifications made to plans. Copyright owned by designer.
At a Glance
-
440 Square Feet
-
1 Floors
-
2 Car Garage
More About The Plan
Plan Details
Basic Details
living sq ft:
440 sq ft
garage sq ft:
440 sq ft
porch sq ft:
24 sq ft
dimensions:
26'-0"W × 20'-0"D
building height:
15'-3"
floors:
1
primary style:
Shingle-Style
secondary styles:
Craftsman, Cottage
collections:
1 Story House Plans, Garage, Garage w/Living, Carports, Small House Plans
Building Details
primary foundation:
Concrete Slab
building lot type:
Level Lot
primary roof pitch:
6/12
roof framing:
Truss
snow roof load:
30 psf.
primary wall type:
2x6 Wood Frame
alternate wall types:
2x4 Wood Frame
exterior wall material:
Shingles
exterior & porch features:
Covered Porch
Interior Details
main floor ceiling height:
9'-0"
Garage
garage:
2 Cars
garage orientation:
Front Entry
What's Included in a Plan Set?
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

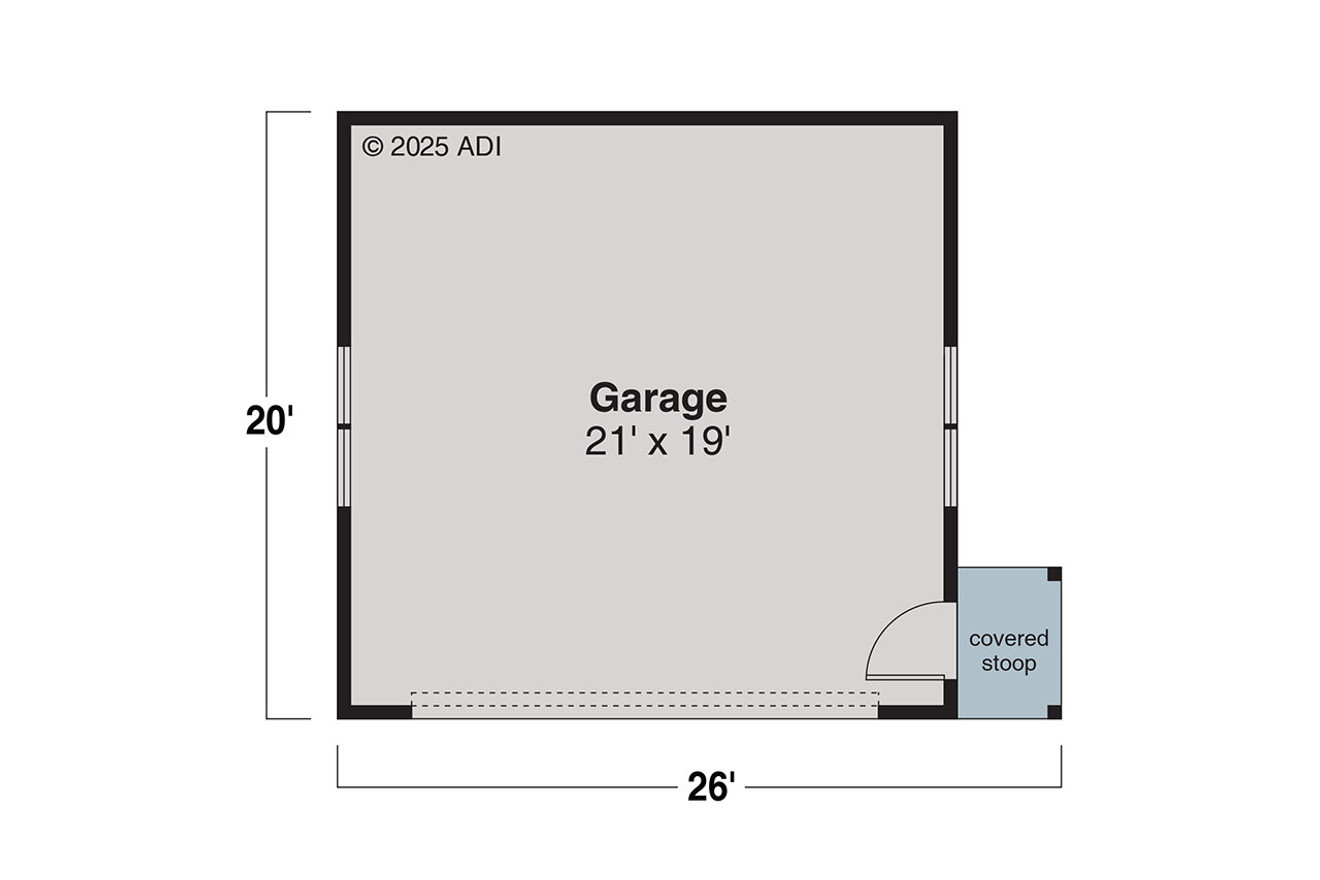

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Concept Plan Packages:
Includes PDF and DWG files of the:
Elevations
Floor Plan (s)
Roof Outline
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
