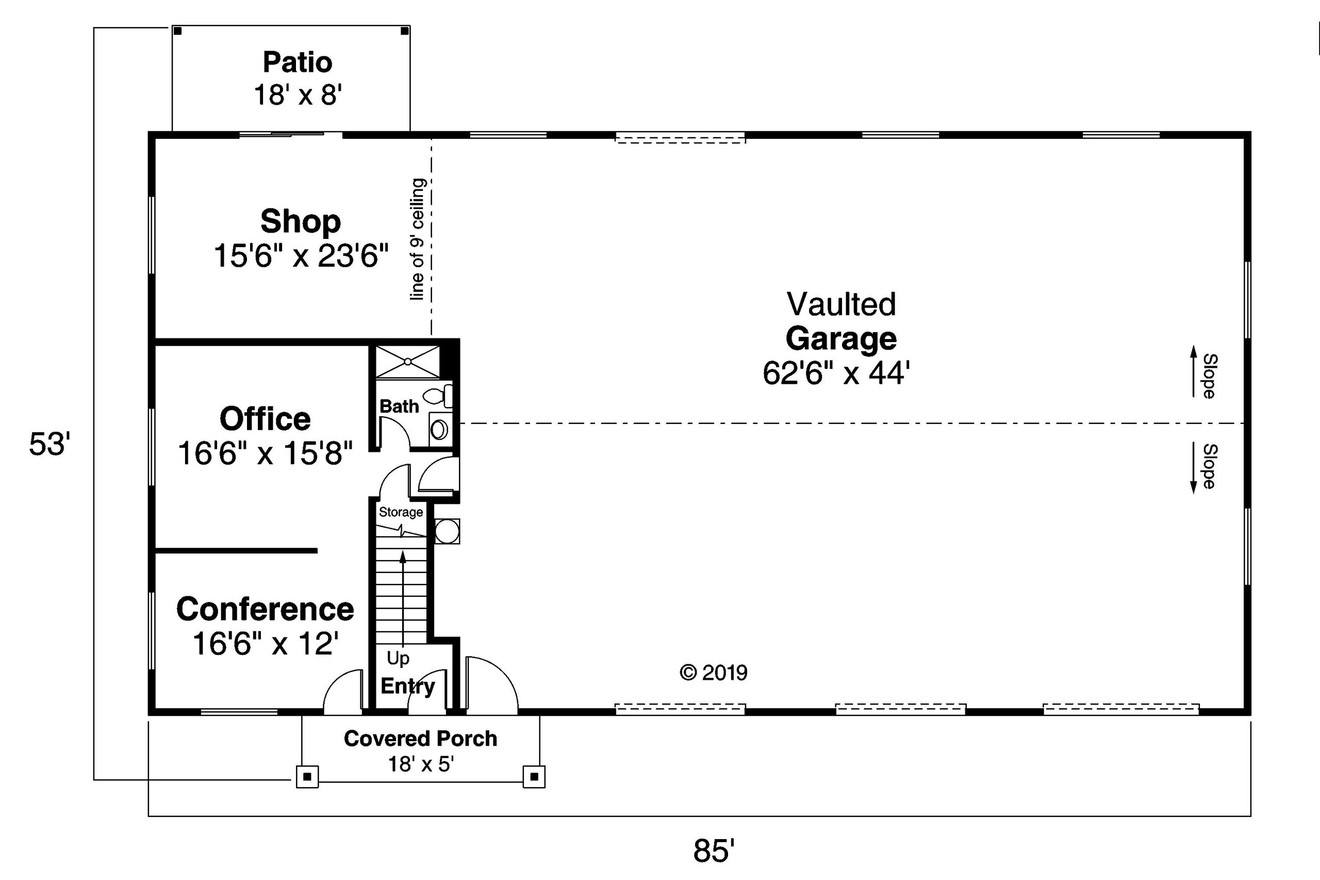

This craftsman style garage plan can house up to six vehicles. Three garage doors decorate the front of the design. Two smaller doors measure 10' wide by 10' tall with a larger RV door measuring 12' wide by 12' tall. The left side of the garage offers shop space along with an office room and conference room with a full bathroom great for an at home business space. A set of stairs with private entrance leads to the second floor apartment with a great room, one bedroom and a full bathroom. The apartment offers private balcony from sliding glass doors near the well-appointed kitchen.
Garage 20-268
Photographs may show modifications made to plans. Copyright owned by designer.
At a Glance
-
4728
Square Feet
-
1
Bedrooms
-
1
Full Baths
-
2
Floors
-
3
- 6
Car Garage
More About The Plan
Contact ADI Client Support Specialist
Contact ADI Experts
Have questions? Help from our customer support specialists is just a click away.
Let’s be social
Connect with us for the latest from HPC
Plan Details
Basic Details
living sq ft:
4728 sq ft
1st floor sq ft:
675 sq ft
2nd floor sq ft:
903 sq ft
garage sq ft:
3150 sq ft
dimensions:
85'-0"W × 53'-0"D
building height:
28'-0"
bedrooms:
1
full baths:
1
floors:
2
primary style:
Craftsman
secondary styles:
Country
collections:
Accessory Structures, 2 Story House Plans, Garage, Garage w/Living, Carports
Building Details
primary foundation:
Concrete Slab
building lot type:
Level Lot
primary roof pitch:
4/12
roof framing:
Combination Stick/Truss
snow roof load:
25 psf.
primary wall type:
2x6 Wood Frame
exterior wall material:
Batt & Board, Stone, Shingles
exterior & porch features:
Balcony, Covered Patio, Covered Porch
Interior Details
main floor ceiling height:
15'-0"
second floor ceiling height:
9'
kitchen features:
Breakfast Nook/Dining Area, Eating Bar or Peninsula
interior features:
Casual or Open Style Living Room, Den, Office, Library, or Study, Great Room
Garage
garage:
3-6 Cars
garage features:
Oversized, RV Garage, Storage, w/Living Space, Workshop or Workbench
garage w x d:
85'-0"W × 53'-0"D
garage width:
85'-0"
garage depth:
53'-0"
garage ridge height:
28'-0"
What's Included in a Plan Set?
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Concept Plan Packages:
Includes PDF and DWG files of the:
Elevations
Floor Plan (s)
Roof Outline
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to Plan Buying?
Garage - 20-268
Associated Designs
$600.00
- SKU:
- 101 - 20-268
- Plan Number:
- 46527
- Pricing Set Title:
- A [801 - 1200]
- Designer Plan Title:
- 20-268
- Date Added:
- 10/11/2019
- Date Modified:
- 12/31/2024
- Designer:
- info@associateddesigns.com; jessica@associateddesigns.com
- Creation Date:
- 10/2019
- Note Plan Packages: PDF Print Package:
- Best Value!
- Note Plan Packages: Plans Now:
- Downloadable!
- Structure Type:
- Garage
- Best Seller (Rank #):
- 10000
- Square Footage: Total Living:
- 4728
- Square Footage: Garage:
- 3150
- Square Footage: 1st Floor:
- 675
- Square Footage: 2nd Floor:
- 903
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 1
- BEDROOMS_filter:
- 1
- Baths Full:
- 1
- FULL BATHROOMS_filter:
- 1
- Ridge Height:
- 28'
- Overall Exterior Depth:
- 53
- Overall Exterior Width:
- 85
- Main Floor Ceiling Height:
- 15'
- Second Floor Ceiling Height:
- 9'
- Available Foundations:
- Concrete Slab
- Default Foundation:
- Concrete Slab
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Batt & Board, Stone, Shingles
- Lot Slope:
- Level Lot
- Roof Framing:
- Combination Stick/Truss
- Snow Roof Load:
- 25.00
- Roof Pitch:
- 4/12
- Primary Style:
- Craftsman
- Secondary Styles:
- Country
- Collections:
- Accessory Structures
- Interior Features:
- Casual or Open Style Living Room
- Interior Features:
- Den, Office, Library, or Study
- Interior Features:
- Great Room
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Eating Bar or Peninsula
- Garage Bays Min:
- 3
- Garage Bays Max:
- 6
- GARAGE BAYS_filter:
- 3
- Garage Features:
- Oversized
- Garage Features:
- RV Garage
- Garage Features:
- Storage
- Garage Features:
- w/Living Space
- Garage Features:
- Workshop or Workbench
- Exterior & Porch Features:
- Balcony
- Exterior & Porch Features:
- Covered Patio
- Exterior & Porch Features:
- Covered Porch
- Garage Overall Depth:
- 53'
- Garage Overall Width:
- 85'
- Garage Ridge Height:
- 28'
- Styles:
- Craftsman House Plans
- Styles:
- Country House Plans
- Collections:
- 2 Story House Plans
- Collections:
- Garage, Garage w/Living, Carports
- Product Rank:
- 160
- Note Plan Packages: Master Builder CAD Set:
- Unlimited Builds!
- Plan SKU:
- 20-268
- Plan Name:
- Garage
- Max Price:
- 1850.00
- Min Price:
- 600.00
- Regions:
- Northwest House Plans/Oregon Home Plans
